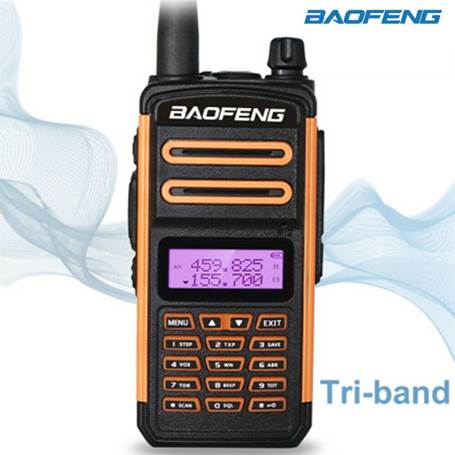

Baofeng 918UV Handfunkgerät VHF UHF Tri-Band Funksprechgerät 5W

https://i.ebayimg.com/images/g/GmkAAOSwschgAWG7/s-l1600.jpghttps://i.ebayimg.com/images/g/n5IAAOSwYbVgAWG6/s-l1600.jpg



Function Features:

1.Tri-band transceiver, with display function menu on the display "LCD"

2. Working frequency: VHF 136-174 MHz  UHF 400-480MHz   220-260MHz

3. High power/low (5W/1W) selectable

4. Up to 128 memory channels

5. Cross band reception transmission

6. CTCSS & DCS, DTMF enmergency alarm

7. Function  'VOX' (voicce operated transmission)

8. Selectable frequecy step 2.5/5/6.25/10/10.25/20/25/50kHz

9. Battery saving function 'SAVE'

10. Emergency SOS sound and light alarm

11. Programmable by PC, ANI code

12. Commercial FM radio receiver (65-108MHz)

13. Built-in LED Flashlight



General:

1. Frequency range: VHF:136-174MHz  220-260MHz UHF: 400-480MHz

    65MHZ-108MHz (only commercial FM radio reception )

2. Supply Voltage: 7.4V/1500mAh

3. Antenna impedance: 50 Ω

4. Memory channel: 128

5. Frequency Stability: ±2.5pp.m

6. Operating Temperature: ±20℃~+60℃

7. Demenssion(LxHxW): 21*18*6.5cm

8. Colour: Black/Orange



Transmitter

1. Output power: Hight:5W  Loe:1W

2.Output comsumption: ≤1.5A

3. Comsumption: 0.18A

4.Modulation distortion: ≤5%

5.Adjacent Channel power: ≤-65dB/≤-60dB

6.Maxium Deviation: ≤±5kHz/≤2.5kHz

7. Emission class: 16KF3E/11KF3E

8. Signal-to-noise(wide/narrow): ≥-45dB/≥=40dB



Receiver:

1. Receive sensitivity: -122dBm(12dB

2. Intermediation(wide/narrow): ≥65dB/≥60dB

3. Adjacent channel selectivity:  ≥65dB/≥60dB

4. Audio power: 1W

5. Audio distortion: <10%

6. Receive Current: ≤380mA



Package:

-1 x walkie talkie

-1 x 7.4V Li-ion Battery

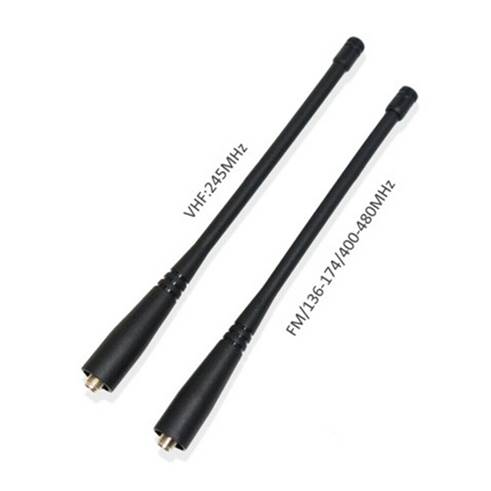

-2 x Antennas

-1 x Hand Strap

-1 x Belt Clip

-1 x Manual

-1 x Earpiece

-1 x Charger
