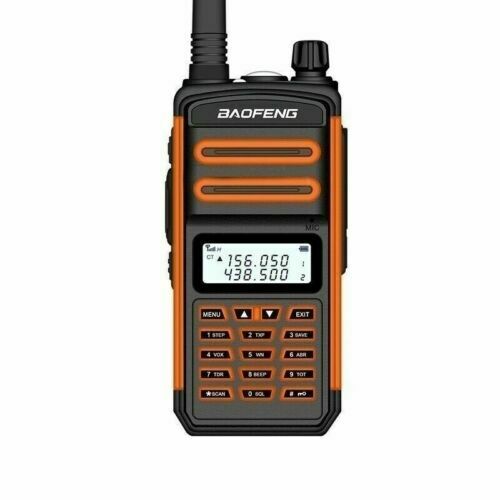

BAOFENG S5 PLUS 18W 9500MAH 160CH  VOX FM RADIO HAND-FUNKGERÄT

BAOFENG-S5-PLUS-18W-9500MAH-160CH-30KM-VOX-FM-RADIO-WALKIE-TALKIE-HAND-FUNKGERAT



Key Feature

1) waterproof and dustproof (Not diving)            2) Relay Forwarding Confirmed (1750 HZ)
3) Dual Band, Dual Display and Dual Standby           4) High &Low Power Switchover
5) Battery Saving                                                         6) VOX Function
7) Wide/Narrow Band Selection                                   8) Auto-Back Light
9) Dual Band Standby                                                10) Time-out Timer (TOT)

11) 50 CTCSS and 104 DCS Codes                           12) Voice Prompt

13) ANI Code                                                                14) PC or Manual Program
15) DTMF Code                                                            16) PTT-ID
17) ATUO Keypad Lock                                                18) Busy Channel Lock Function
19) Low Battery Warning                                              20) Emergency Alarm
21) Priory Scanning Function                                      22) U/V Cross Band Dual Watch



General

Frequency Range

VHF:136-174MHz UHF400-520MHz

Channel Capacity

160

Channel Spacing

25KHz/12.5KHz

Antenna Impedance

50Ω

Microphone Impedance

600Ω

Operating Voltage

7.4V DC±15%

Frequency Stability

±2.5ppm

Battery

 high capacity (Polymer Li-ion)

Compatible With American Military Standard(Mil-STD-810C/D/E)

Transmitter(EIA-RS 316B STANDARD)

RF Power Output

high  power

Modulation Type

FM Radio (65.0MHz-108.0MHz)

Modulation Sensitivity

<15µV

Modulation Distortion

≤3%

Max Freq Deviation

<5KHz

Occupied Bandwidth

≤16KHz

Modulation Feature

±3dB

Spurious Radiation

≤7.5μW

Adjacent Channel Power

≤-65dB

Receiver

Sensitivity(12db SINAD)

≤0.15μ(12dB S/N)

Squelch Sensitivity

≤0.1μV

Audio Power output

1W/16Ω

Audio Respond

-6

Operation Bandwidth

>5KHz

Co-channel Rejection

≥-8dB

Blocking

≥85dB

Adjacent Channel Selectivity

≥65dB

Standby Current

60mA,15mA

Spurious Rejection

≥60dB

Intermodulation Resistance

≥60dB





Standard Package Includes:

1X Portable radio BAOFENG S5 PLUS

1X Antenna

1X Li-ion battery pack

1X Charger

1X Belt clip

1X The sling

1X Headset

1X User's manual
