ABBREE AR-F6 6 Bands Anzeige 125-559 Mhz

BBREE AR-F6 6 Bands Dual Display Dual Standby 999CH Multi-Band Multi-functional DTMF VOX SOS Walkie Talkie Two Way Radio

Function:

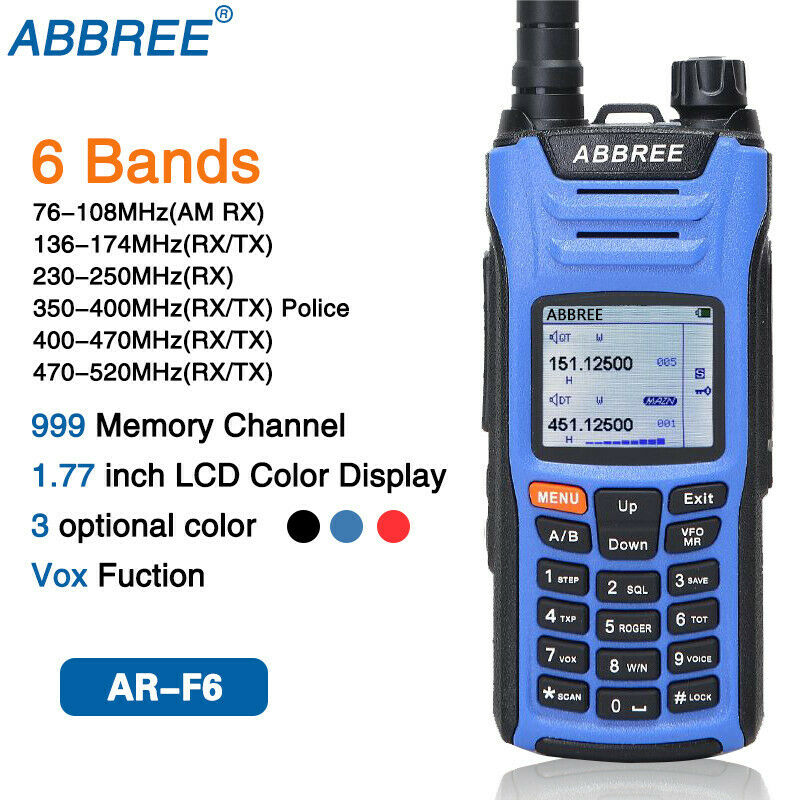

Frequency Range: 6 Bands

76-108MHz(AM RX)

136-174MHz(RX/TX)

230-250MHz(RX)

350-400MHz(RX/TX)

400-470MHz(RX/TX)

470-520MHz(RX/TX)

-999 Memory Channel

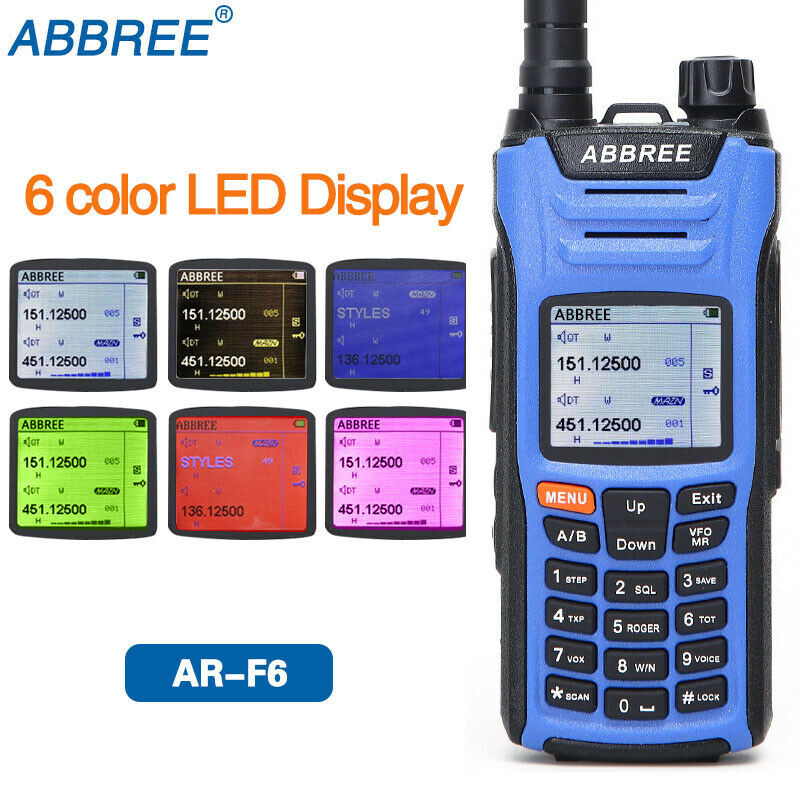

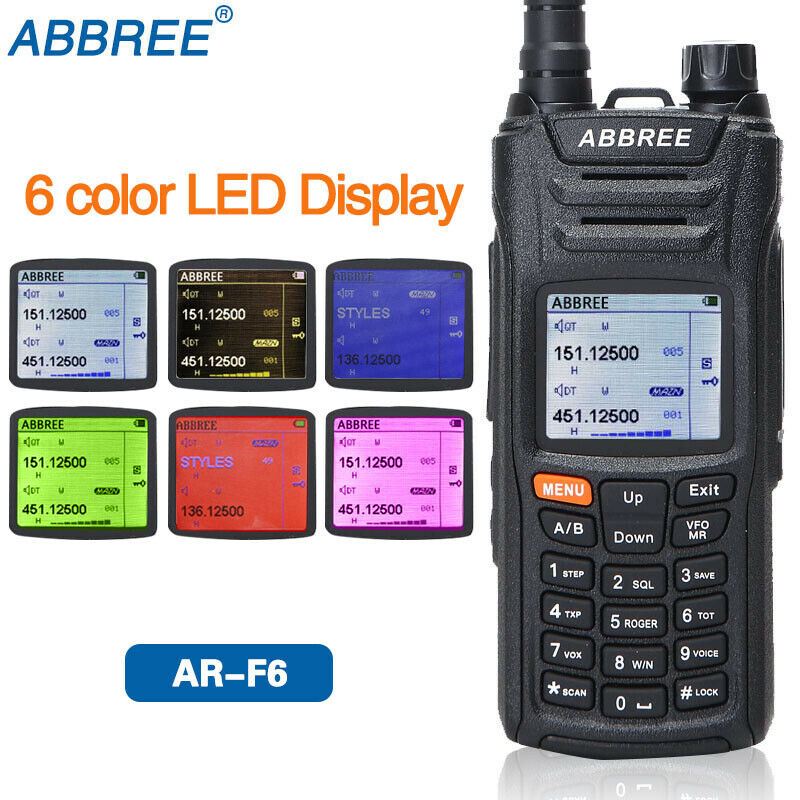

-1.77inch LCD Color Display

-VOX Function

-Emergency Function

-Scan Function

-Battery Save

-Squelch Function

-PC Programming

-Monitor Function

-Scrambling Function

-Low Power Prompt

-TOT(Time-out Timer)

-BCLO(Busy Channel Lock)

-CTCSS&DCS Encode/Decode

-DTMF Encoding/Decoding

-SOS

-Prior Channel Scanning

-CTCSS/DCS Scan

-Programmable Non-Standard CTCSS/DCS

-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)

-Multi Keypad Lock Modes

-PTT ID

-Wide/Narrow Bandwidth Selection

-Operational voice prompt in Chinese and English

-Display interface in Chinese and English

-Stopwatch function

-Frequency sweeping function

Specifications:

Intergration
Frequency Range	76-108MHz(AM RX) 136-174MHz(RX/TX) 230-250MHz(RX) 350-400MHz(RX/TX) 400-470MHz(RX/TX) 470-520MHz(RX/TX)
Transmitter	Wide Bandwidth	Narrow Bandwidth
Type of Modulation	16K F3E	11K F3E
Adjacent Channel Power	=70dB	=60dB
Spurious	=60db	=60dB
Audio Response	+1~3dB(0.3~3KHz)	+1~3dB(0.3~2.55KHz)
Max Frequency Deviation	±25KHz	±12.5KHz
Receiving	Wide Bandwidth	Narrow Bandwidth
Adjacent Channel Selectivity	=70dB	=60dB
Inter Modulation	=65dB	=60dB
Spurious Response	=70dB	=70dB
Audio Response	+1~3dB(0.3~3KHz)	+1~3dB(0.3~2.55KHz)
Signal to Noise Ratio	=45dB	=40dB

Package Contents:

1×AR-F6 Radio

1× 1800mAh Li-ionBattery

1× Intelligent Charger

1× Belt Clip

1× SMA-FemaleAntenna

1× Handstrap

1× User's Manual
