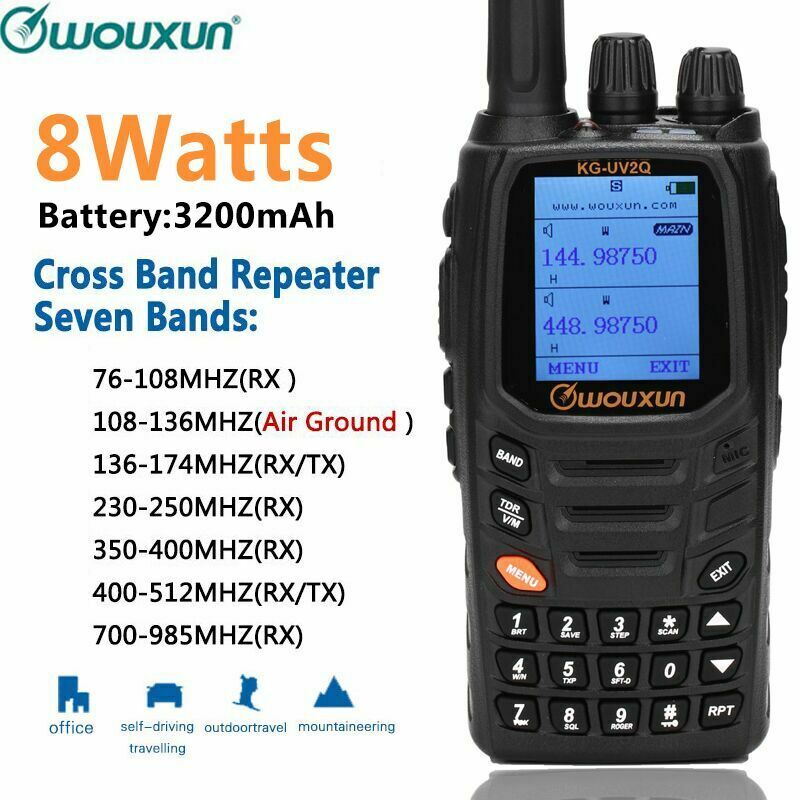

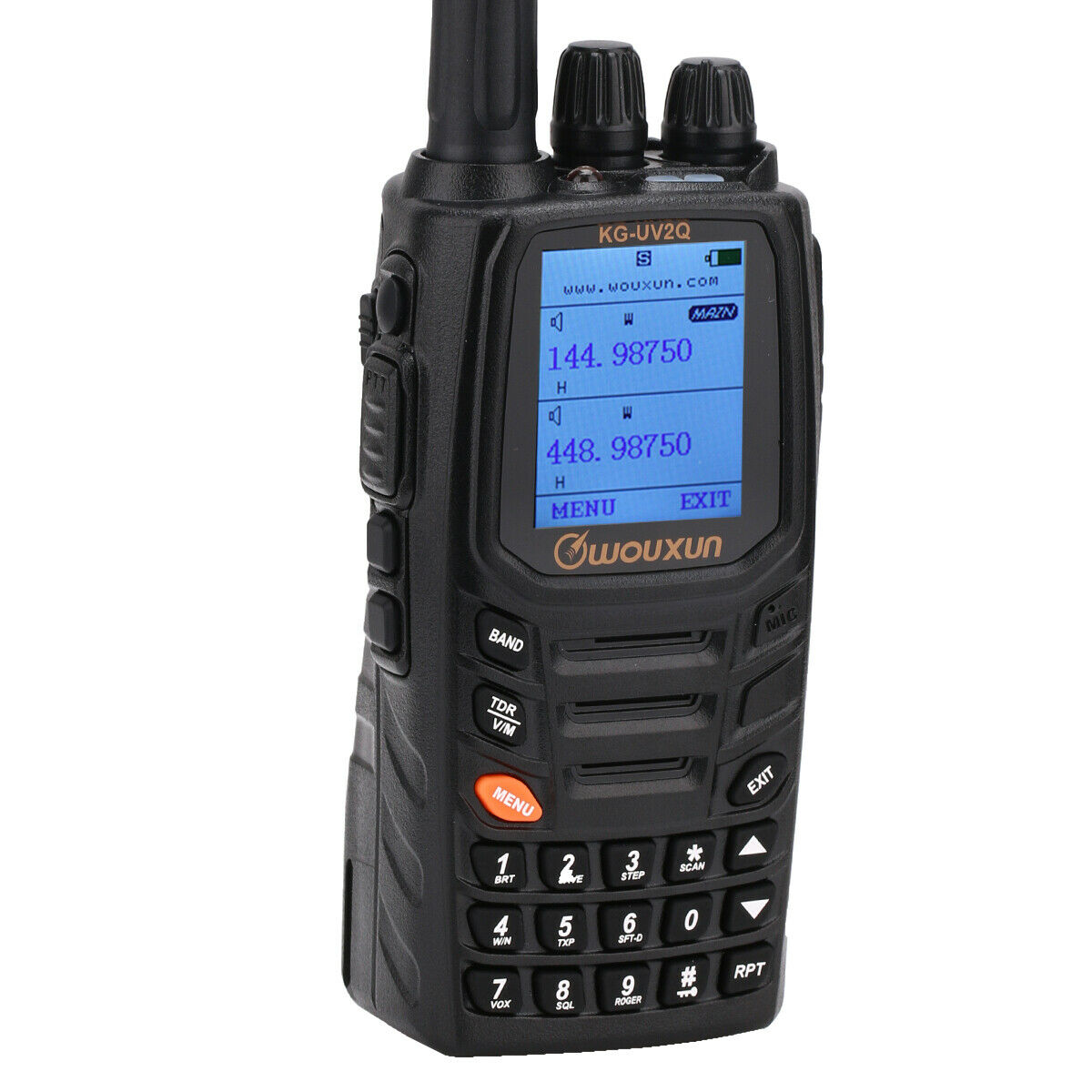

Wouxun KG-UV2Q 8W High Power 7 Bänder/Airband

Cross Band Repeater Walkie Talkie

10W Powerful Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV2Q

1.10W/4W/1W Powerful,3200mAh Li-ion Battery
It is UHF:8W and VHF:10W,With 3200mAh larger Capacity

2.Dual Band , Cross Band Repeater , Large Color Screen

With two independent receivers for both UHF and VHF, you can listen to either the same or different bands simultaneously , large color screen can display more information

3.Seven Bands Reception and Dual Bands Transmission

Wider frequency ranges meet different demands. The frequency range is from 76MHz to 965MHz, including FM radio and air band

4.Classic Circuit , Excellent Performance

Mature circuit design and high quality electronic components, after years of use can still maintain stable performance

5.Using High Quality Plastic and Rubber Material

High quality plastic can make the shell more robust and durable good rubber material can make the buttonhas a good touch feel

Features:

-Frequency Range

TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)

136-180MHz(FM)

230-250MHz(FM)

350-400MHz(FM)

400-512MHz(FM)

700-985MHz(FM)

-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)

-Separate Bands Duplex (U-V,V-U)

-DTMF Encoding/Decoding

-All Calls,Group Calls and Selective Calls

-Stun,Kill,Monitor and Inspection

-CTCSS/DCS Scan

-Programmable Non-Standard CTCSS/DCS

-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)

-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)

-English Voice Guide

-Priority Scan, Priority Channel Setting

-Twin Band Simultaneous Scan

-Multi Power Save Modes

-Auto Power-OFF Timer (APO)

-Three Output Power Levels:

UHF: H:8W,M:4W,L:1W VHF: H:10W,M:5W,L:1W

-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)

-Multi Keypad Lock Modes

-PTT ID

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection

Specifications:

Intergration
Frequency Range	TX:136-174MHz(FM) 400-512MHz(FM) RX:108-136MHz (AM Band Receiving) 136-180MHz(FM) 230-250MHz(FM) 350-400MHz(FM) 400-512MHz(FM) 700-985MHz(FM)
Step	2.5/5/6.25/10/12.5/25/30/50/100KHz
Channel Number	999
Work Mode	F2D/F3E
Operating Temperature	-20degc to 60degc
Antenna Resistance	50Omega
Voltage	7.4VDC
Weight	490g
Size	124.5times61.49times33.88(mm)
Transmitter	Wide Bandwidth	Narrow Bandwidth
Type of Modulation	16K F3E	11K F3E
Adjacent Channel Power	ge70dB	ge60dB
Spurious	ge60db	ge60dB
Audio Response	+1~3dB(0.3~3KHz)	+1~3dB(0.3~2.55KHz)
Max Frequency Deviation	plusmn5KHz	plusmn2.5KHz
FrequencyStability	plusmn2.5ppm
Audio Distortion	le5%
Ouput Power	UHF: H:8w, M:4W,L:1W
	VHF: H:10W,M:5W,L:1W
Receiving	Wide Bandwidth	Narrow Bandwidth
Adjacent Channel Selectivity	le70dB	le60dB
Inter Modulation	le65dB	le60dB
Spurious Response	le70dB	le70dB
Audio Response	+1~3dB(0.3~3KHz)	+1~3dB(0.3~2.55KHz)
Signal to Noise Ratio	ge45dB	ge40dB
Audio Distortion	le5%
Audio Power	Transceiverle500mW
Sensitivity	108-136MHz (AM)-106dBM SINAD 13db 136-180MHz(AM)-119dBM SINAD 13db 230-250MHz(AM)-116dBM SINAD 13db 350-400MHz(AM)-119dBM SINAD 12db 400-512MHz(AM)-119dBM SINAD 13db 700-985MHz(AM)-96dBM SINAD 13db

Package Contents:

1 KG-UV2Q Radio Body

1 3200mAh Li-ion Battery

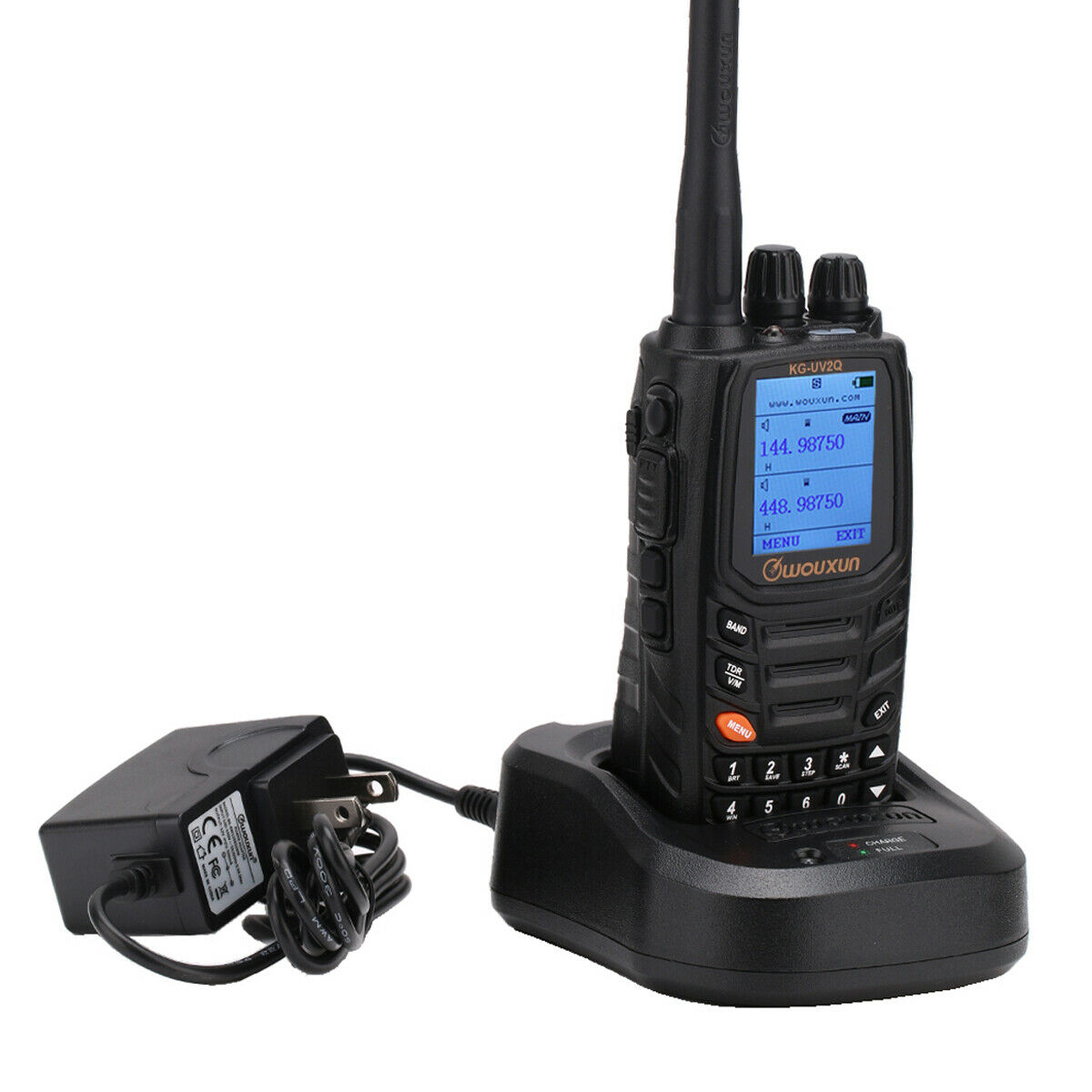

1 Intelligent Charger

1 Belt Clip

1 SMA-Male Antenna

1 Handstrap

1 User's Manual
