UV3R Version1

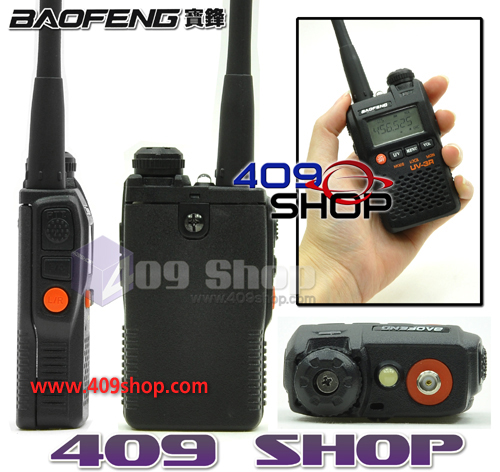

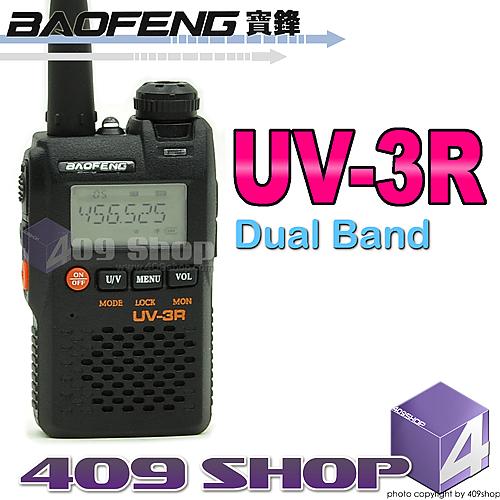

BAOFENG UV-3R 136-174/400-470Mhz mini radio
BAOFENG UV-3R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-470MHz
- Single freq.display
- Output Power: 2 Watts
- 99 Channels + 1 Emergency Channel
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (87.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High / Low Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- BatterySaver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 5/6.25/12.5/25KHz
|
Specifications:
|
Frequency Range
|
VHF136-174 UHF 400-470MHz (Dual Band)
|
|
Operating Voltage
|
3.7V
|
|
Operating Temperature
|
-30c~+60c
|
|
Battery
|
(Li-ion)
|
|
AntennaImpedance
|
50 ohm
|
|
Dimension(withoutantenna&battery(L×W×H)
|
47*81*23(mm)
|
|
Weight(withantenna&battery)
|
about 130g
|
|
Transmitter
|
|
RF Power Output
|
UHF:2W/
|
|
FM Noise
|
65dB
|
|
Adjacent Channel Power
|
45dB/42dB
|
|
Receiver
|
|
Spuriousresponserejection
|
60dB
|
|
Receiver current
|
400mA
|
|
Standby Current
|
75mA
|
|
|
|
|

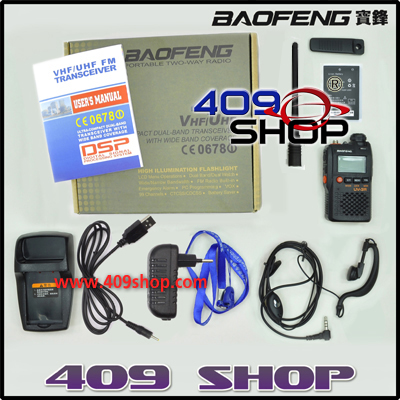

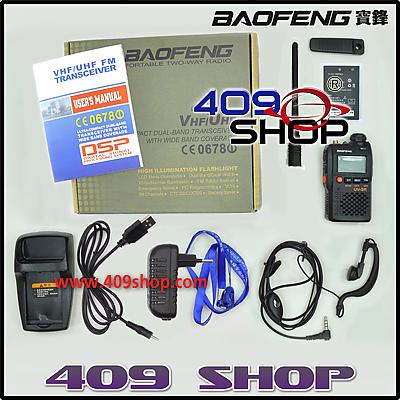

- 1 x BAOFENG UV-3R (VHF136-174 / UHF 400-470Mhz Dual Band)
- 1 x 3.7v Li-ionBattery
- 1 x Dual Band Antenna OR 2x Antenna (UHF Antenna and VHF Antenna)
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Charger with Cable /PSU (Provide PSU plug for your Country)
- 1 x PTT Earpieceforfree
- 1 x WRIST STRAP
|
|
|
|
|
