TH-8600 Tragbarer wasserdichter VHF / UHF

https://pg-cdn-a2.datacaciques.com/00/MjA3/19/05/24/vtrg1bi460m04518/9939c2418d5c5f8e.jpg

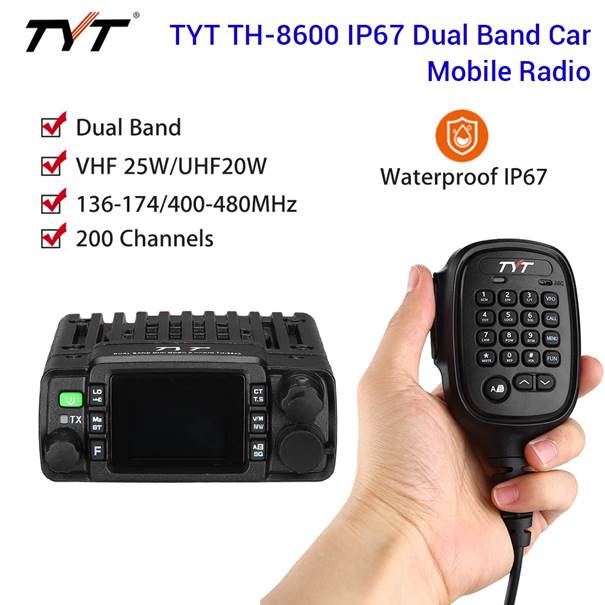

The TYT TH-8600 is IP67 waterproof 25W VHF UHF 136-174MHz/400-480MHz Dual band, dual standy, dual dispaly, LCD color display mobile radio.It is the solid choice for outdoor enthusiasts and motorcycle enthusiasts.In the above vedio, We fully soak TYT TH-8600 car radio in the water of 1.5m deep to test call.

MainFunctions

Large color LCD display

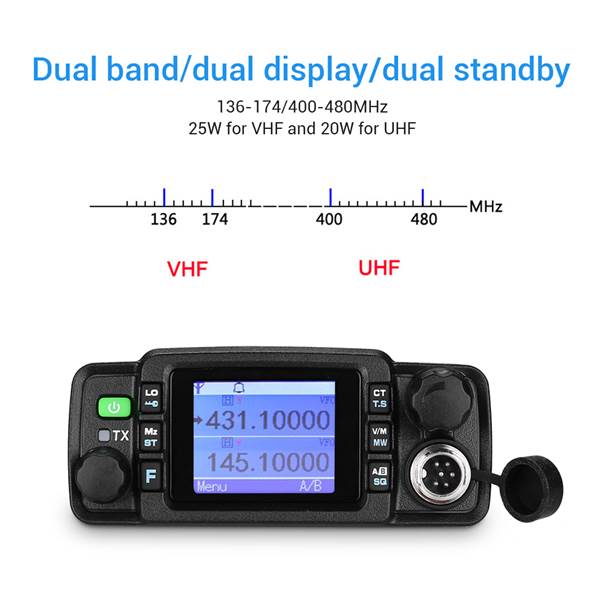

Dual band, dual display and dual standby

25W for VHF and 20W for UHF high power

200 storage channels

P1-P4 programmable functional keys

IP67 waterproof

DTMF/2Tone/5Tone

CTCSS/DCS

1750Hz tone

Remote stun/kill and activate



Specification

Item number

TH-8600

General

Frequency Range(MHz)

136-174/400-470MHz

Channel No.

200

FrequencyStability

±1ppm

Operating Temperature

-30?~+60?

Operating Voltage

13.8V DC

Dimension

125*107*45mm

Weight

1.2kg

Transmitter

Output power

VHF25W/UHF20W

Transmitting Current

4A*13.8V

Standby Current

0.2A*13.8V

FM Modulation

Wide band:16K0F3E


Narrow band:11 K0F3E

Modulation distortion

<5%

FM Hunand Noise

=45dB*25KHz
=40dB*12.5KHz

AdjacentCh. power

=60dB*12.5KHz
=70dB*25KHz

Audio response

+1~-3dB

Receiver

Sensibility

0.2µV

AdjacentCh.Selectivity

60dB*12.5KHz
70dB*25KHz

Intermodulation

=60dB/=65dB

SpuriousRejection

=70dB

Audio response

+1~-3dB

RF Sensitivity

-122dbm(12db SINAD)

Audio Distortion

<5%

FM Hunand Noise

=45dB*25KHz
=40dB*12.5KHz

Ratedaudio

4W
