Artikelmerkmale
|
|
Brand:
|
Radioddity
|
|
Batterycapacity:
|
2600mAh
|
MPN:
|
327908821
|
|
Compatible
Brand:
|
Mototrbo
|
Color:
|
Black
|
|
|
Model:
|
GD-73A
|
|
Output
power:
|
2W/0.5W high-low power
|
Dimensions
Unit OfMeasure:
|
CM
|
|
Communications
Protocol:
|
Digital
DMR
|
Weight
Unit OfMeasure:
|
KG
|
|
Plug Type:
|
EU Plug
|
ShippingWei
ght:
|
0.5
|
|
Herstellernummer:
|
327908821
|
Features:
|
Hotspot Use, Range Max Receiver, SMS, Digital
encryption, FCC CE Certificated
|
|
Funktionen:
|
Dual Band,CEcertificated,PMR,Flashlight
|
Marke:
|
Radioddity
|
|
Produktart:
|
Tragbar/Handgerät
|
Type:
|
Portable/Handheld
|
|
Modell:
|
GD-73 A
|
Frequency
Band(s):
|
UHF
|
|
Hersteller:
|
Radioddity
|
Channel
No.:
|
1024
Channels
|
|
Kommunikationsprotok
oll:
|
Digital DMR dual time
slots and supports tier II.
|
Battery
Type:
|
Li-ionbattery
|
|
Talk
Range:
|
About 5km
|
UPC:
|
Does not
apply
|
|
EAN:
|
4897093821782
|
|
|
|
Ausstattung
*Programmierbare Scan-Funktion der hinterlegten
Funkkanäle
*TOT (Time Out Timer) Funktion
*Robuste Zubehörbuchse
*Einfache Aktualisierung der Gerätefirmware
sowie der Programmiersoftware
*kostenlose Updates (ggfs auch mit neuen,
zusätzlichen Funktionen)
|
|
Lieferumfang:
1 x GD-73A
1 x 2600mAh Lion-Akku
1 x Gürtelclip (mit zwei Befestigungsschrauben)
1 x USB Programmier-/Ladekabel
1 x USB-Netzteil
1 x Ohrhörer
1 x Deutsches Benutzerhandbuch
|
|
|
|

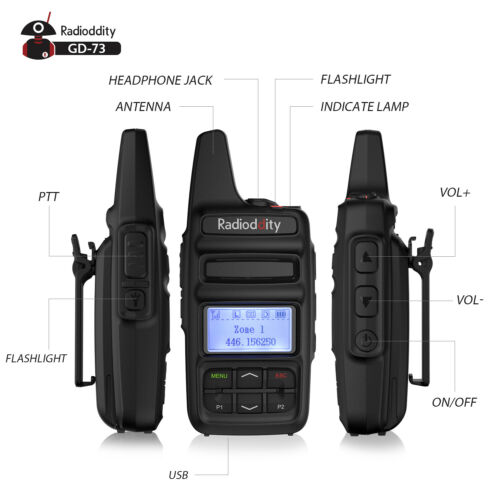

Radioddity GD-73A/E | DMR | UHF/PMR | USB Program & Charge | 2600mAh | SMS | Hotspot Use
The difference between GD-73A and GD-73E
|
Difference
|
GD-73A
|
GD-73E
|
|
Frequency
|
UHF
406.1-470MHz
|
PMR446
(license-free)
|
|
Power
|
2W/0.5W (high-low power)
|
Fixed 0.5W
|
Specifications
General
Frequency range: GD-73A: 406.1-470MHz | GD-73E: PMR
Number of channels: 1024 (in 64 zones of 16 channels each)
Channel spacing: 12.5kHz （Digital Mode）| 25 KHz/12.5 KHz (Analog Mode)
Operating voltage: DC 3.6V
Battery capacity: 2600mAh standard Li-Ion
Working temperature range: -30℃~+60℃
Storage temperature range: -40℃~+85℃
Antenna impedance: 50Ω
Audio output power: ≤1W @16Ω
Dimensions (H*W*D): 115mm* 50mm * 32mm
Weight: 148g
Transmitter
RF output power: GD-73A: ≤2W | GD-73E: ≤500mW
Frequency stability: ±1.0ppm
Adjacent channel spurious: ≤60dB
Free Time Slot Power: TDMA ≤ -57dBm
Hum and Noise: -40dB@12.5kHz
Spurious Radiation: Antenna 9kHz - 1GHz ≤-36dBm | 1GHz – 12.75GHz ≤-30dBm
FM-Modulation: 12.5kHz: 11K0F3E
4FSK Digital Mode: 12.5kHz (data only): 7K60FXD | 12.5kHz (data + voice): 7K60FXE
Modulation Maximum Deviation: 2.5kHz@12.5kHz
Nonactive Slot Power: ≤ -57dBm
Digital Protocol ETSI TS 102 361-1 -2 -3
Vocoder Type: AMBE+2TM
Audio Response: +1dB~-3dB
Modulation BER (Bit Error Rate): ≤5%
Receiver
Analog sensitivity: 0.35µV/-116dBm (20dB SINAD) | 0.22µV/-120dBm (Typical)
Digital sensitivity 0.3µV/-117.4dBm (BER 1%) | 0.22µV/-110dBm (BER 5%)
Co-channel rejection: ≥-12dB
Adjacent Channel Selectivity: TIA603C: 65dB | ETSI: 60dB
Spurious Response: TIA603C: 75dB | ETSI: 70dB
Audio output power: 1W
Audio response: 1dB~-3dB
Rated Audio Distortion: 3% (Typical)
Spurious Radiation: Antenna: 9kHz - 1GHz ≤-57dBm | 1GHz – 12.75GHz ≤-47dBm

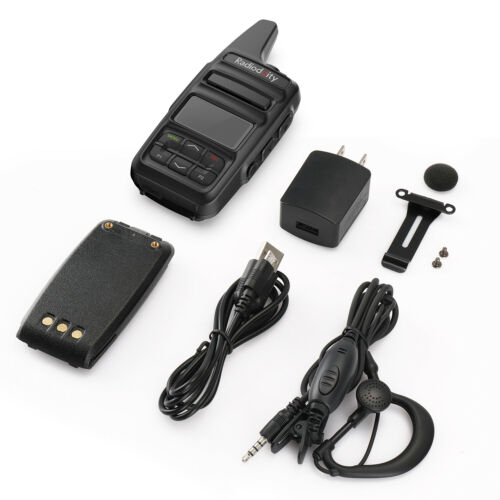

Package Content:
1 x GD-73A/E Radio
1 x 2600mAh Li-ion battery
1 x Belt Clip (with two screws)
1 x Programming Cable (available for charging)
1 x Power Adapter
1 x Earpiece
1 x User Manual
|
|
|
