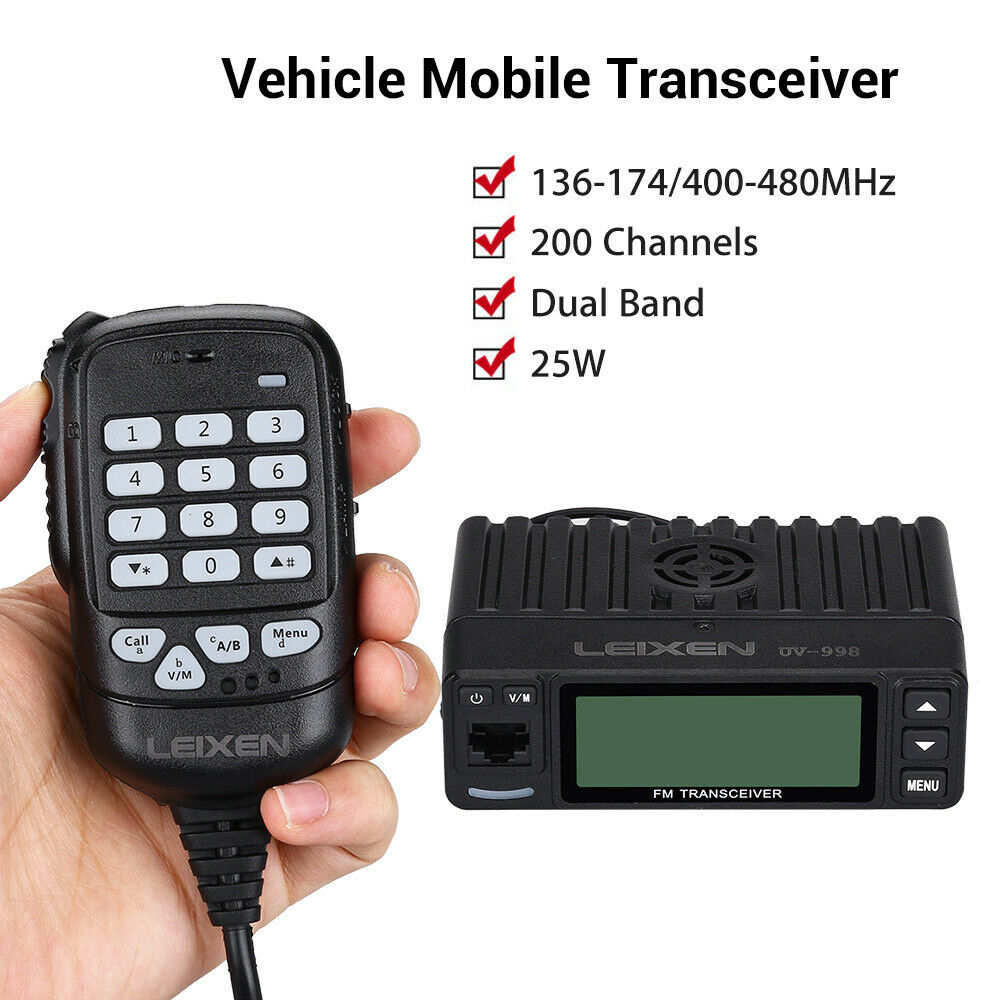

Band : VHF/UHF Dual Band
TX Frequency : 136~174MHz /400~480MHz
RX Frequency : 400~520MHz/136~174MHz/
200-260MHz/87.5-108MHz
Channel Capacity : (99CH+3VFO)*2
Output Power (Low/Mid/High) : 5W/10W/25W
Operation Mode : Simplex
Dimension : (L*W*H) 120×90×40mm
Weight : 320g
Modulation Limitation : =±5KHz
Spurious Radiation : 60dB
TX Current : 3.5A
Frequency Stability : ±2.5PPM
Rx Sensitivity : <0.18µV
Modulation Type : F3E
Audio Power : =400mW
Standby Current : 78mA(Power Saving mode is 30mA)
Rated Voltage : 13.8V
|
