Radioddity GD-77S DMR | Dual Band | 5W | 2 Time-slot DMR

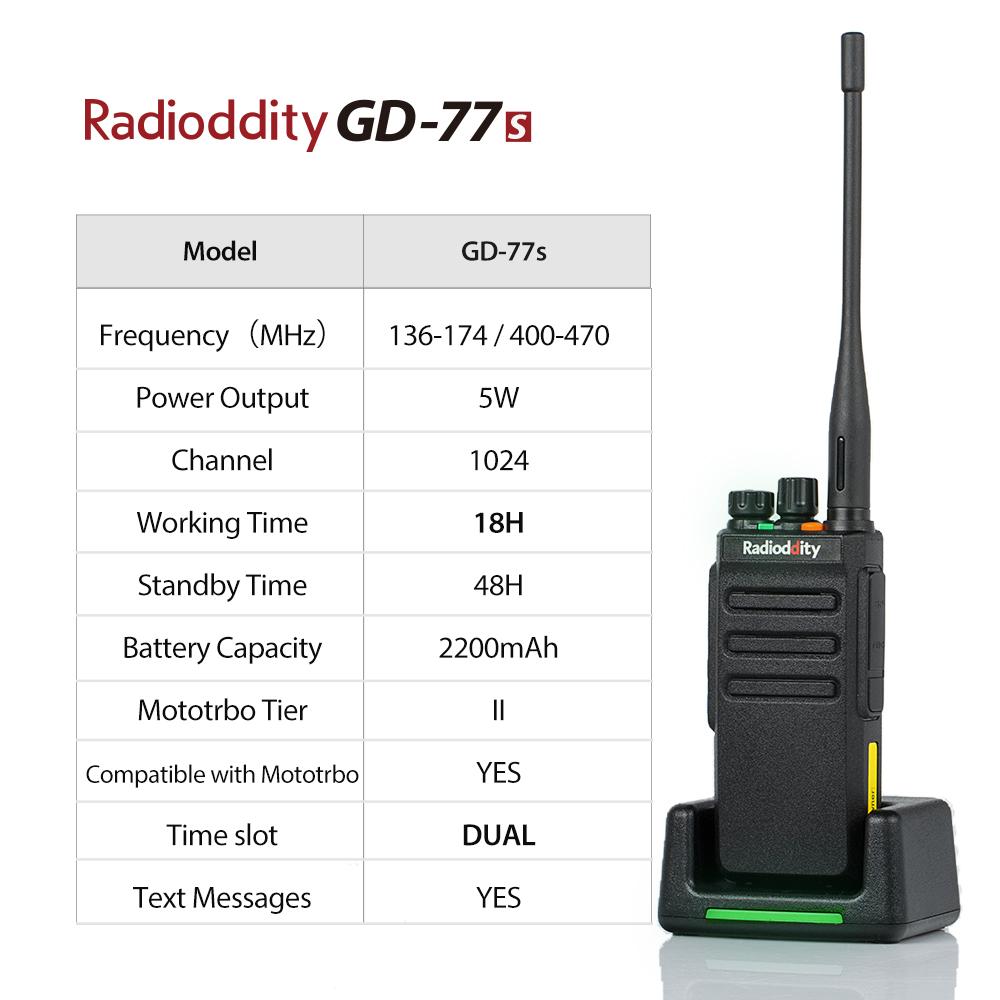

Specifications:

  • Frequency Range: VHF:136-174MHz, UHF 400-470MHz
  • Output Power: 5W
  • Newly added Channel Rotate Button

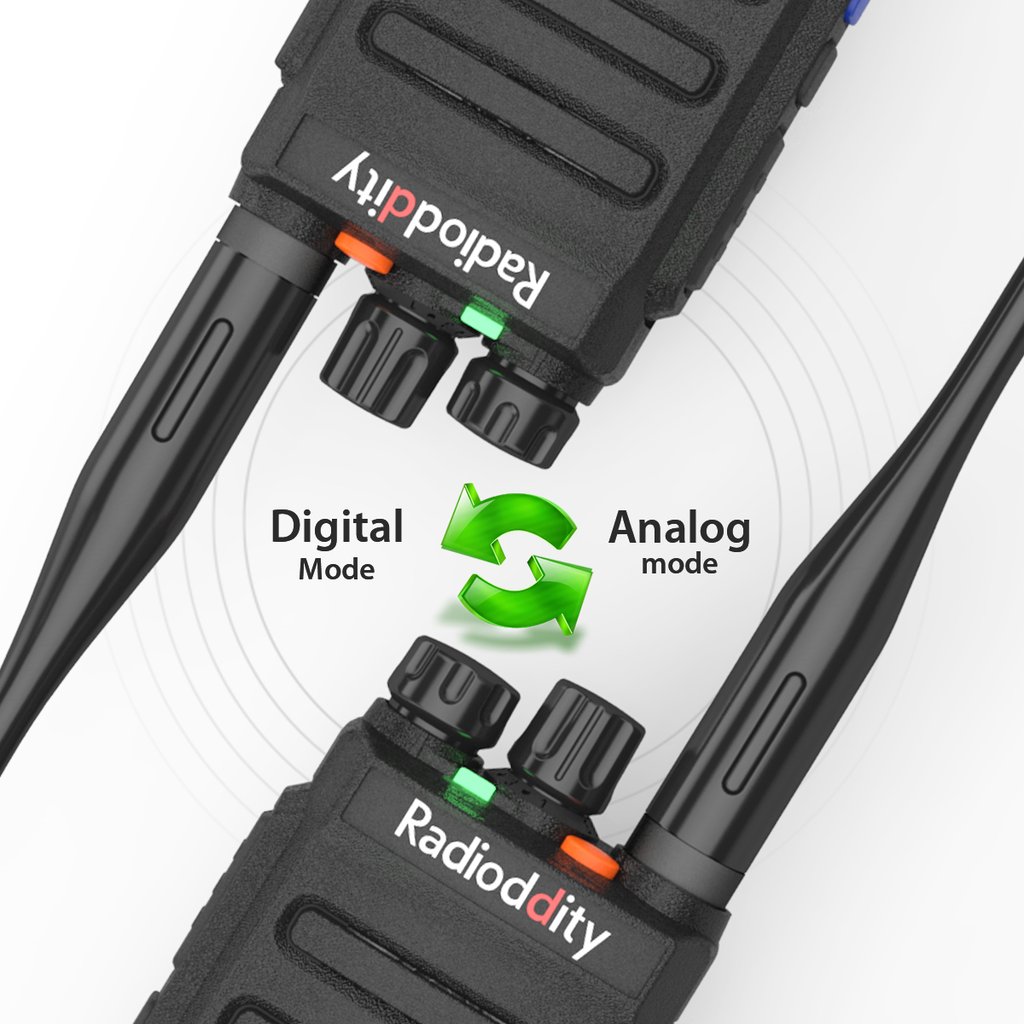

  • Analog & Digital DMR Tier I & II, compatible with Motorola and other DMR radios
  • High-Low Power: 5W/1W
  • Contact ID Capacity: 256
  • RX Group list: 76, each RX group list can hold 32 contact ID
  • Scan list: 64, each scan list can hold 32 channels
    • Zone Capacity: 32, each zone can hold 16 channels
    • Channel Capacity: 1024
    • Battery Capacity: 2200 mAh Li-Po battery
  •
  • Features:

    • Added Channel Rotate Button for fast switching channels.
    • Fast switching between zones, use side button to set zones.
    • Scan function supports both analog & digital mode.
    • Monitor mode: Turn on monitor mode, when time slot and color code are confirmed, you can receive frequency with no limit of contact id and RX group lists.
    • Customize shortcut keys with side buttons: including long-press and short-press. Editing shortcut keys with Programming Software.
    • Voice Prompt: Channel number, RX frequency, TX frequency, zone (mode), time slot (1,2), color code, DMR ID, power
    • Repeater function supports both analog & digital mode.
    • With SMA-Female antenna base, compatible with all SMA-Male antennas.
    • Driver-free programming cable, plug and play
    • User-friendly programming software: support bulk editing on channels and contact ID, support import and export with CSV file.
    • Continuously support on software and firmware update
  •
  • Product Function:

    • Programmable CTSS/DCS
    • Squelch
    • TOT
    • VOX
    • Encrypt
    • Emergency Alarm
