2 Connect Instructions for Combined Repeater
32RPT-SET, This
function is using two mobile radios to program as a combined repeater.
It is separated to one repeating receiver and one repeating two-way

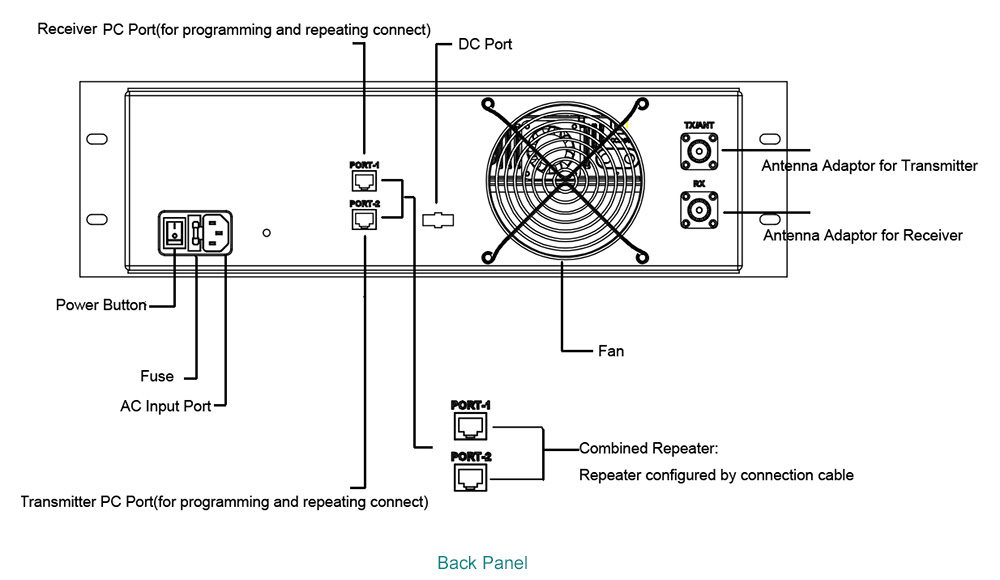

radio, which is connected by a eight-core double crystal cable through
PC port of two mobile radios.
Repeating Receiver(RPT-RX)æF Only working for receiving as combined repeater
Repeating Two-Way Radio(TW-RPT)æF working for transmitting and receiving as combined repeater
? it works for receiving when receiving the compatible carrier
? it works for transmitting when getting the transmitting instruction from repeater
One repeating receiver and one repeating two-way radio makes a
directional repeater. Two mobile radios which is pre-programmed as
repeating two-way radio make a bidirectional repeater.
NOTEæF
>> Repeating tone is better to help learn the working status in time and efficiently. Please set it by MENU46.
>> Repeating Keep Timer is helping avoid frequent PTT press and
release from message response. Keep time is permitting mobile radio
keeping transmitting for specified time even after PTT of receiver
releases. If there is no valid QT/DQT signals received, PTT of
transmitter releases then. When QT/DQT signal disappears, it permits
keeping transmitting for specified time. This function is only
supported by programming software.
3 Configuration on combined repeater
1÷jMENU 30 Repeating Speaker Switch(RPT-SPK)æF Turn ON or OFF the speaker when repeating
2÷jMENU 31 Repeating PTT SwitchøiRPT-PTT÷jæF Permit PTT transmit through hand microphone when connected to repeater or not
3÷jMENU26(RX-CTCSS) and MENU27(RX-DCS) CTCSS/DCS for receiver in order to avoid interference.
4÷jFrequencies
programming for Receiver and Transmitter In standby, press button 2,
and input the specified frequency manually. Please make sure the
frequency offset is at least 25K between transmitter and receiver.
Please refer to the instructions of compatible mobile radios for other
settings.
|
