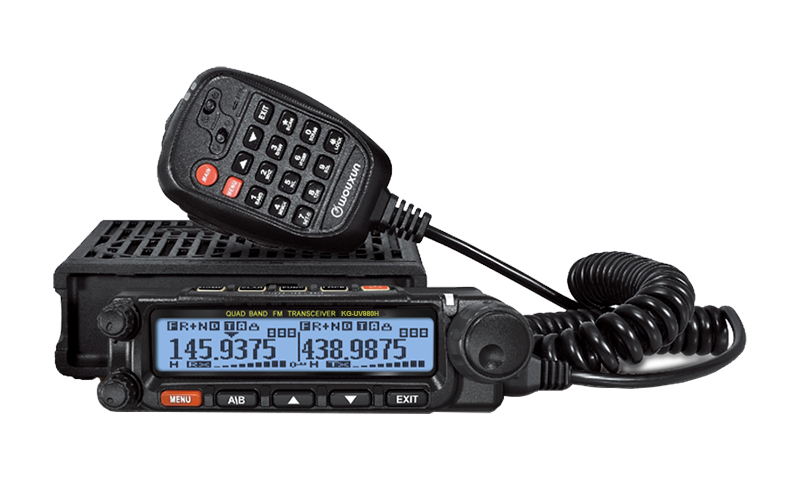

Car Mobile Radio KG-UV980H
Cross Band Repeater , Shortcut Key Front Panel
|
|
 |
 |
MAIN FUNCTIONS
- Dual Frequency Display, Dual Independant Operation System
- Seven Bands for Receiving , Three Bands (Including SW) for Transmitting
- Twin Band / Same Band Simultaneous Reception
- 999 Memory Channels
- Front Panel And Radio Body Flexible For Separation
- QT/DOT Encoding And Decoding
- QT/DOT Scanning
- Non-standard CTCSS/DCS Setting Freely
- Same Band Repeat on Two Combined Radios
- Dual Track And Multi-way Loudspeakers
- Hand Microphone DTMF With Loudspeakers
- Caller ID Display
- DTMF Encoding And Decoding
- Multiple Scanning Ways
- Group Calls, All Calls And Selective Calls
- 8 Groups of Scrambler
- Priority Channel Scanning
- APO Power Management
- Wide / Narrow Bandwidth Selectable
- Chinese or English Voice Guide
- Automatic Temperature Detection
- Stun / Kill Function
- Single Audio Pulse Frequency
- Multiple Back Light Color Selectable
- Scan Channel Adding / Deleting
- Grouping Channel Scanning
- Multiple Setting for Cooling Fan
|
| TECHNICAL SPECIFICATION
|
|
Intergration
|
|
Frequency Range
|
Suitable For Different Countries or Areas
TX , FM
66-88MHz / 136-174.995MHz
400-479.995MHz
RX , FM
66-88MHz / 108-180.995MHz
320-349.995MHz / 400-479.995MHz
700-987.995MHz
RX , AM
108MHz-136MHz
|
|
Step
|
5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
|
|
Channel Number
|
999
|
|
Work Mode
|
F2D / F3E
|
|
Operating Temperature
|
-20 ?¢`+60 ?
|
|
Voltage
|
13.8 VDC±15%
|
|
Antenna Impedance
|
50 O
|
|
Weight
|
1438 G
|
|
Size
|
140 x 44 x 207 MM
|
|
|
|
Receiver
|
|
|
Wide
|
Narrow
|
|
Adjacent Channel Selectivity
|
=70dB
|
=60dB
|
|
Inter Modulation
|
=65dB
|
=60dB
|
|
|
|
Spurious Response
|
=70dB
|
=70dB
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~3KHz)
|
|
Signal to Noise Ratio
|
=45dB
|
=40dB
|
|
Audio Distortion
|
=5%
|
|
Audio Power
|
transceiver=3w , hand microphone=1w
|
|
Sensitivity
|
UHF/VHFæF0.25µVøi12dB SINAD÷j
|
|
|
|
Transmitter
|
|
|
Wide
|
Narrow
|
|
Adjacent Channel Power
|
=70dB
|
=60dB
|
|
Type of Modulation
|
16K F3E
|
11K F3E
|
|
Spurious
|
=60dB
|
=60dB
|
|
Signal to Noise Ratio
|
=40dB
|
=36dB
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~3KHz)
|
|
Output Power
|
VHF(5/10/25/50 W) , UHF(5/10/25/40 W)
|
|
|
