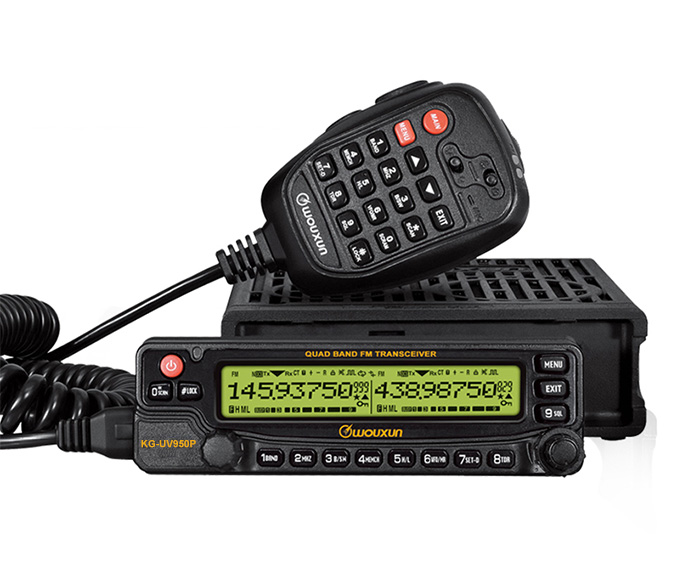

Eight Bands for Receiving, Four Bands(Including SW) for Transmitting
|
Dual Frequency Display, Dual Independant Operation System
|
|
Wide receive and transmit frequency range can be compatible the communication
with the other wider product range. At the same time, use different frequency range
can make the communication distance longer for different surroudings.
|
Completely Seperated Two Operation Systems, Dual Track, Dual Speaker, even one
area can not work well, the other area can receive/transmit well. In
the emergency communication, improve the stability of communication.
|
|
Remote Control Function
|
Unidirectional or Two Way Cross Band Repeater
|
|
Use remote control function to lock, power on/off, monitor, and change the current frequency, CTCSS/DCS of the remote radio.
|
Use the repeater function , it can realize the signal repeater from V band to U band, or U band to V band.
|
|
|
|
MORE FUNCTIONS
|
|
Twin band /same band simultaneous reception
999memory channels
Front panel and radio body flexible for separation
QT/DOT encoding and decoding
QT/DOT scanning
Non-standard CTCSS/DCS setting freely
Same -band repeat on two combined radios
High power output
Dual track and multi-way loudspeakers
Hand microphone DTMF with loudspeakers, receiving indicator
and volume adjuster
Caller ID display
DTMF encoding and decoding
Group calls, all calls and selective calls
|
8 groups of scrambler
Priority channel scanning
APO power management
Wide / narrow bandwidth select able
Voice guide
Automatic temperature detection
Stun/kill function
Single audio pulse frequency
Multiple back light color select able
Scan channel adding /deleting
Grouping channel scanning
Multiple scanning ways
Multiple setting for co
|
|
 |
| TECHNICAL SPECIFICATION
|
Intergration
|
|
Frequency Range
|
suitable for different countries or areas
TX , FM
26-29.995MHz / 50-53.995MHz / 136-174.995MHz
400-480.995MHz
RX , FM
26-29.995MHz / 50-54.995MHz / 65-108MHz
108-180.995MHz / 320-349.995MHz
400-480.995MHz / 700-987.995MHz
RX , AM
108MHz-136MHz
|
|
Step
|
5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
|
|
Channel Number
|
999
|
|
Work Mode
|
F2D/F3E
|
|
Operating Temperature
|
-20?¢`+60?
|
|
Voltage
|
13.8VDC±15%
|
|
Antenna Impedance
|
50O
|
|
Weight
|
1438 g
|
|
Size
|
140 x 44 x 207 MM
|
|
|
|
Receiver
|
|
|
Wide
|
Narrow
|
|
Adjacent Channel Selectivity
|
=70dB
|
=60dB
|
|
Inter Modulation
|
=65dB
|
=60dB
|
|
Spurious Response
|
=70dB
|
=70dB
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~3KHz)
|
|
Signal to Noise Ratio
|
=45dB
|
=40dB
|
|
Audio Distortion
|
=5%
|
|
Audio Power
|
transceiver=3w , hand microphone=1w
|
|
Sensitivity
|
UHF/VHFæF0.25µVøi12dB SINAD÷j
|
|
|
|
Transmitter
|
|
|
Wide
|
Narrow
|
|
Adjacent Channel Power
|
=70dB
|
=60dB
|
|
Type of Modulation
|
16K F3E
|
11K F3E
|
|
Spurious
|
=60dB
|
=60dB
|
|
Signal to Noise Ratio
|
=40dB
|
=36dB
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~3KHz)
|
|
|
Sendeleistung
|
- 5 /
15 / 50 W schaltbar (10m / 6m / 2m)
- 5 /
15 / 40 W schaltbar (70cm)
|
|
Betriebsarten
|
- Senden
FM
- Empfang
FM / AM / WFM
|
|
