BAOFENG BF-888s walkie talkie UHF 400-470 MHz
Product Description:
BAOFENG BF-888s walkie talkie
1. Frequency:400-470MHz
2. 16 channel
3. 1500mAh Li-ion battery
4. weight:170g
FUNCTIONS AND FEATURES:
- 50 CTCSS/105 CDCSS
- VOX Function
- Voice Prompt
- PC Programming
- Emergency Alarm
- Intelligent Charging
- Battery Save
- Low Voltage Alert
- Time-out Timer
- Torch Light

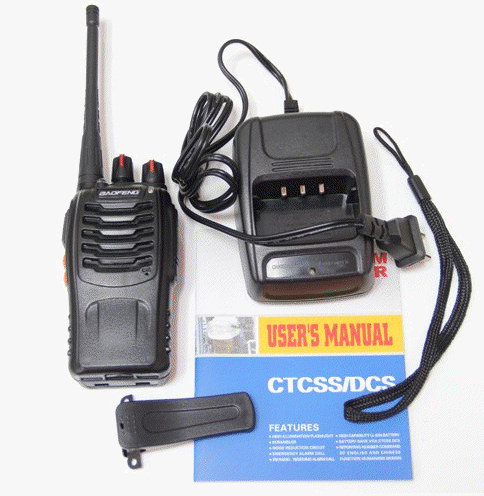

1 x BAOFENG BF-888S (UHF 400-470Mhz)
1 x 3.7v 1500mah Li-ion Battery
1 x SMA-Female Antenna.
1 x Belt Clip.
1 x ENG Manual
1 x Desktop Charger (100V /240V )+(Free adaptor for UK or EURO or Australia)
1 x PTT Earpiece for free
1 x WRIST STRAP
1 x S013F (FREE)
***This Radio DO NOT have SCRAMBLER
|
General Specifications |
|
|
Frequency Range |
UHF 400-470MHz |
|
Channel Capacity |
16 |
|
Channel Spacing |
25KHz |
|
Operated Voltage |
3.7 V |
|
Battery |
1500MAh Li-ion |
|
Battery Life(5-5-90 duty cycle) About 8 hours |
|
|
Frequency Stability |
±2.5ppm |
|
Operated Temperature |
-30°c-+60°c |
|
Antenna Impedance |
50Ω |
|
Dimensions (L×W×H) (with battery,without antenna) |
110×50×32 mm |
|
Weight (with battery/antenna) |
198g |
|
Communication Range |
about 6km |
|
Transmitter |
|
|
RF Power Output |
3W |
|
Spurious Emission |
≤65dB |
|
FM Noise |
≤-45dB(W) ≤-40dB (N) |
|
Audio Distortion |
≤5% |
|
Transmitting Current |
≤1.3A |
|
Receiver |
|
|
Sensitivity (12dB SINAD) |
≤0.20 uV |
|
Selectivity |
55dB/50dB |
|
Intermodulation |
≥65dB |
|
Adjacent Channel Selectivity ≥60dB |
|
|
Spurious Response |
≥60dB |
|
FM Noise |
45dB/40dB |
|
Audio Power Output |
1000mW |
|
Audio Distortion |
≤5% |
|
Standby Current |
≈15mA (with battery save on) |
