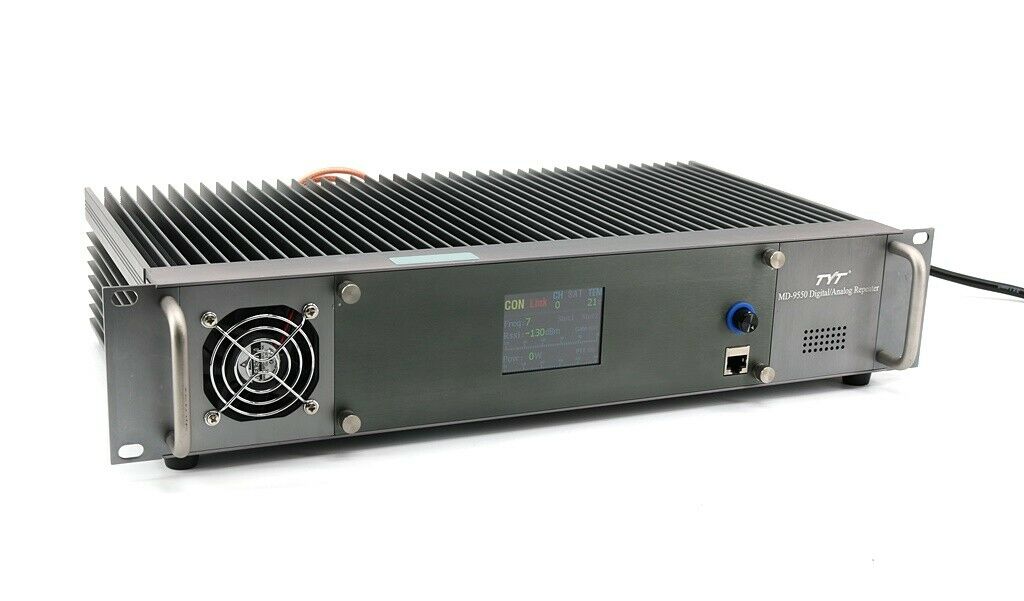

TYT MD-9550
VHF Repeater DMR Digital & Analog / TYT MD-9550 /
136-174 MHz / 2m-Band
VHF Repeater
für DMR Digital oder Analog FM einsetzbar. Frequenzbereich 2m-Band 136-174 MHz.

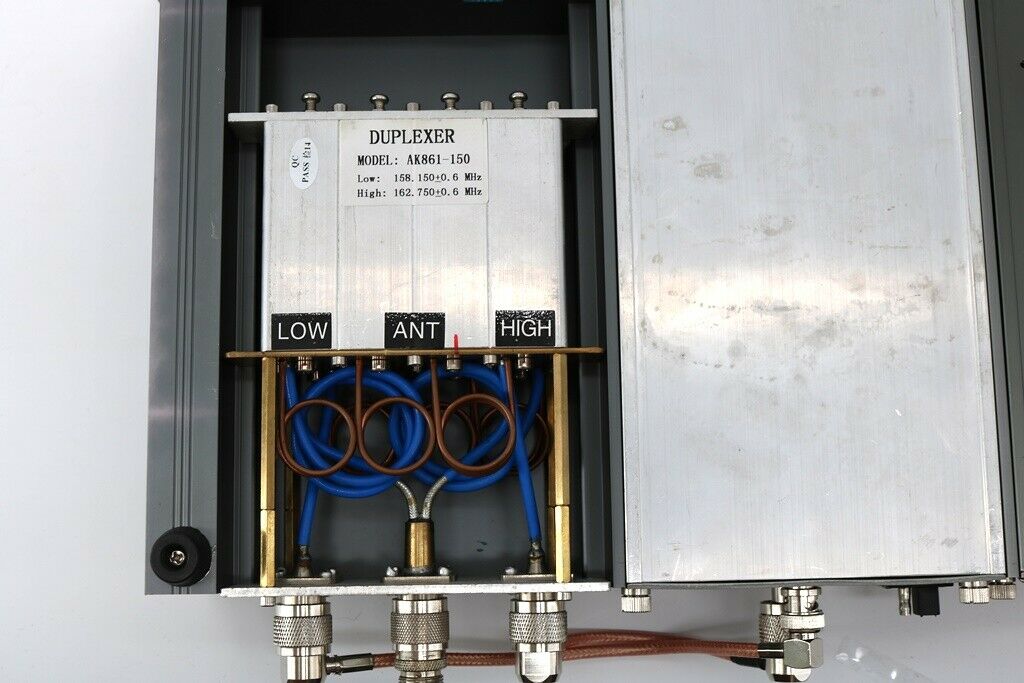

Per PC-programmierbar. Mit integriertem Duplxer.
Die
Programmiersoftware können Sie auf der Website des Herstellers TYT
downloaden.
|
Repeater MD-9550 |
||
|
Frequency Range |
136-174MHZ |
|
|
Channel space |
12.5kHz/25 kHz |
|
|
Multi-Access Method |
TDMA |
|
|
Duplex Spacing |
5M~10MHZ |
|
|
Modulation and demodulation |
4FSK/FFSK/FM |
|
|
Successive data speed (per carrier) |
9.6kbps |
|
|
carrier frequency
error |
≤100Hz |
|
|
Operating Humidity |
20%~80% |
|
|
Storage Humidity |
<80% |
|
|
Operating temperature |
-30℃~60℃ |
|
|
Storage temperature |
-40℃~85℃ |
|
|
Transmitter |
||
|
Frequency stability |
±0.1ppm |
|
|
RF Output power |
0~50W |
|
|
Maximum Output power Tolerance |
± 1.5dB(Normal)/+2/-3 dB(Extreme) |
|
|
Adjacent Channel Power |
-65dB @ 12.5KHZ /-75dB @ 25 KHZ |
|
|
Conducted/Radiated
interference |
9kHZ~1GHz≤-36dBm |
|
|
1GHz~12.5 GHz≤-30dBm |
||
|
Conducted/Radiated
interference |
30MHz~1GHz≤-36dBm |
|
|
1GHz~12.5 GHz≤-30dBm |
||
|
Inter- Modulation attenuation |
≤-60dB@ 12.5KHZ ≤-70dB@ 25 KHZ |
|
|
Transient switch ACPR |
±12.5KHZ≤-50dB: ±25 KHZ:
≤-60dB |
|
|
Receiver |
||
|
Sensitivity(5%BER) (Digital) |
Static Sensitivity |
-120 dBm |
|
Static Sensitivity |
-115 dBm |
|
|
Sensitivity(12 dB SINAD) (Analog) |
-115 dBm |
|
|
Maximum Signal Rx level |
-7 dBm |
|
|
Adjacent channel
selectivity |
-65dB @ 12.5KHZ /-70dB @ 25 KHZ |
|
|
Co-channel Rejection |
12dB |
|
|
Blocking |
84dB |
|
|
Inter-modulation |
70dB |
|
|
Spurious Response Rejection |
70dB |
|
|
Conducted Spurious
Emission |
-57 dBm |
|
