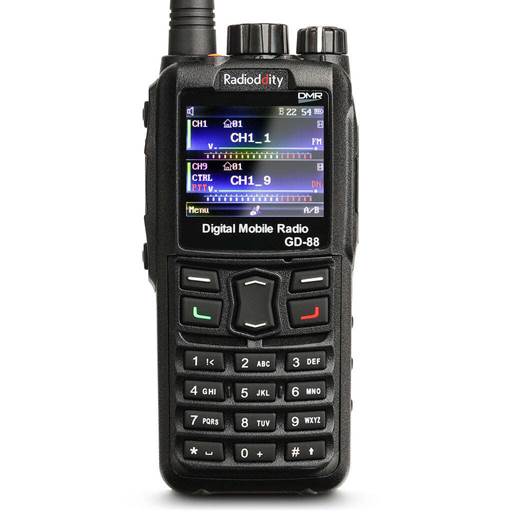

Radioddity GD-88 DMR Radio 7W Dual Band Digital Analog Cross-band Repeat 3000mAh

Bild 1 von 7

Bild 3 von 7

Bild 5 von 7

Bild 7 von 7

General Functions	Digital Functions	Analog Functions
1. High-low Power 2. VFO Mode 3. Cross-band Repeater & Monitor 4. Man Down Alert 5. Emergency Alarm 6. Scan Function 7. VOV 8. TOT 9. Busy Channel Lockout 10. Keypad Lock 11. Power Saving 12. FM Radio	1. Private / Group / All Call 2. Talk Around 3. Roaming 4. Recording 5. TDMA Direct Mode 6. GPS/APRS	1. DTFM RX/TX Reminder 2. Analog Channel Call 3. Narrow / Wide Band Selectable 4. Squelch Level Selectable 5. Busy Channel Lockout 6. Monitor 7. CTCSS / DCS

Specifications
Frequency Range: VHF 136-174MHz RX/TX | UHF 400-480MHz RX/TX
FCC ID: 2AN62-GD88
Low Power: 2.5W
High Power: 7W
Zones: 16
Channel Capacity: up to 4000 (250 per zone)
DMR Talk Groups: to be confirmed
Digital Contacts: 300,000
Water-resistant rating: IP54
Encryption: AES256
Display: 2" color TFT Screen
Battery: 3000mAh lithium-ion battery with power saving
Bandwidth: VHF ≤±5 kHz @ 12.5 kHz | UHF ≤±7 kHz @ 25 kHz
DMR: Tier I & Tier II
Programmable: Comes with a programming cable
Speaker Jack: 2-pin Kenwood/Wouxun earpiece/speaker mic K1 connection

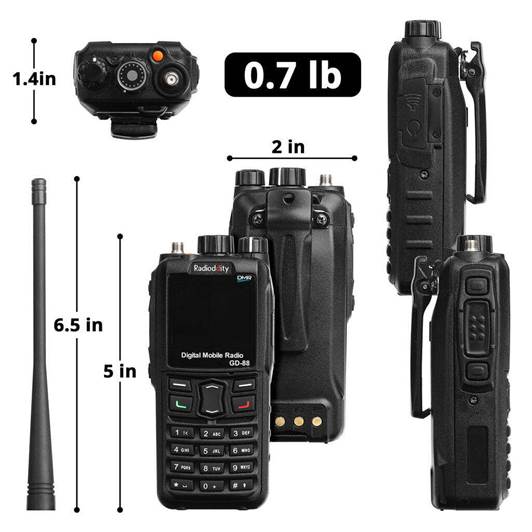

Size: 5x2x1.4in | 12.5x5.5x3.5cm
Weight: 0.7 lb | 330g
　

What’s in the box?
1 x Radioddity GD-88 Radio
1 x 3000mAh Battery
1 x Antenna
1 x Belt Clip
1 x Desktop Charger (2-in-1)
1 x AC Adaptor
1 x Wrist Strap
1 x Programming Cable
