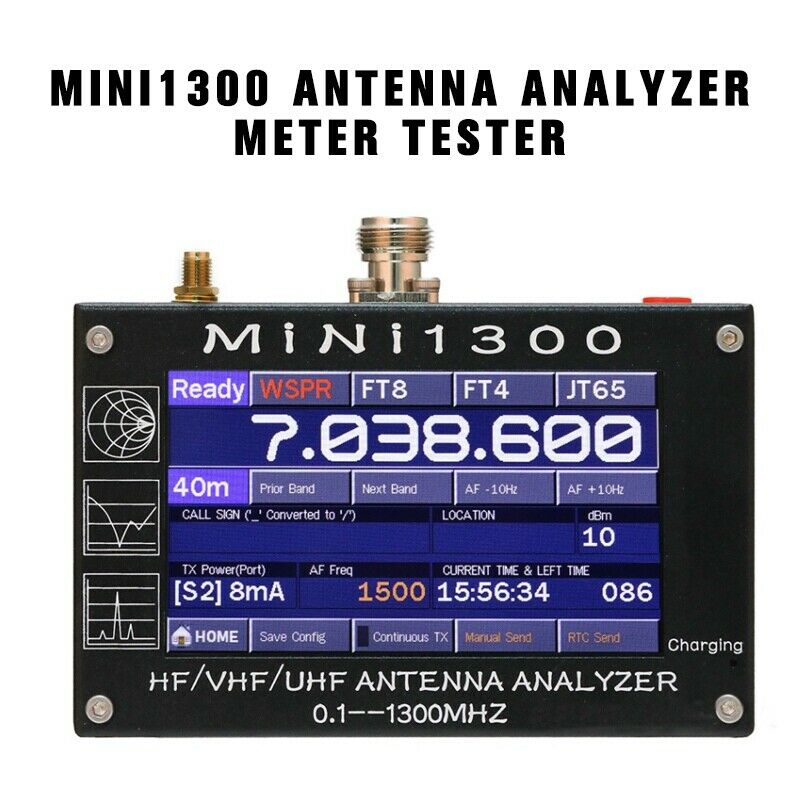

Mini1300 LCD 0.1-1300MHz HF/VHF/UHF ANT SWR 4.3"

Antenna Meter Tester Analyzer

https://i.ebayimg.com/images/g/stcAAOSwZ~ld3M~c/s-l1600.jpg

https://i.ebayimg.com/images/g/bfoAAOSwZEdd3M~g/s-l1600.jpg

https://i.ebayimg.com/images/g/GQ4AAOSwZf5d3M~j/s-l1600.jpg

https://i.ebayimg.com/images/g/oJIAAOSwAyld3M~0/s-l1600.jpg

https://i.ebayimg.com/images/g/lUkAAOSwGzBd3M~p/s-l1600.jpg



Artikelmerkmale:
Frequency Range: 0.1-1300MHz
HF/VHF/UHF contiunous coverage
In/Out Impedance: 50
Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
SWR MeasureMent Range: 1.0-1999（Single Point Mode), 1.0-20.0 (Scan Mode)

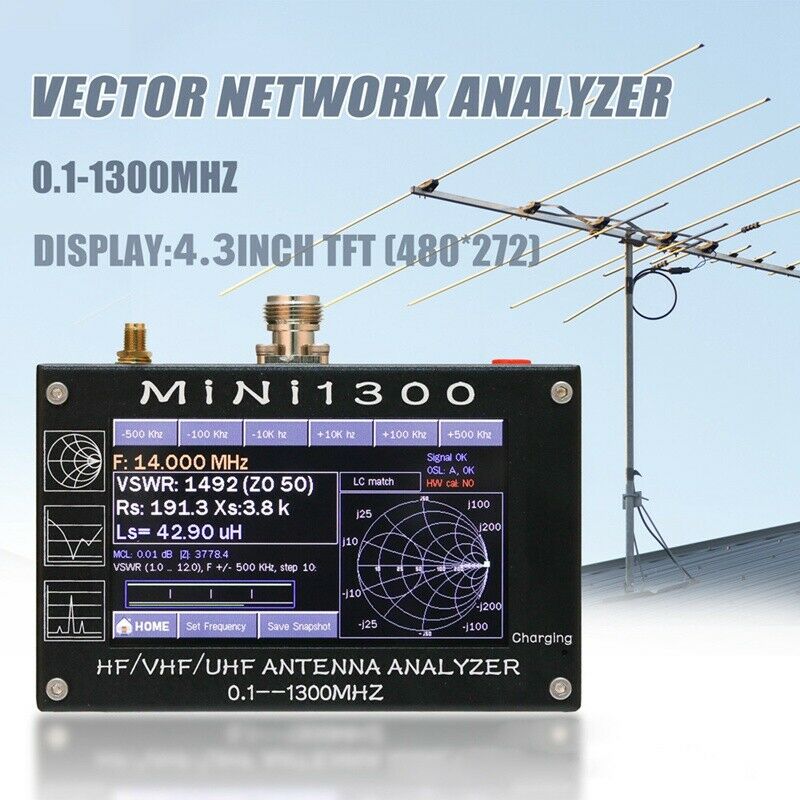

Display Modes: Numerical display, curve display, simith chart

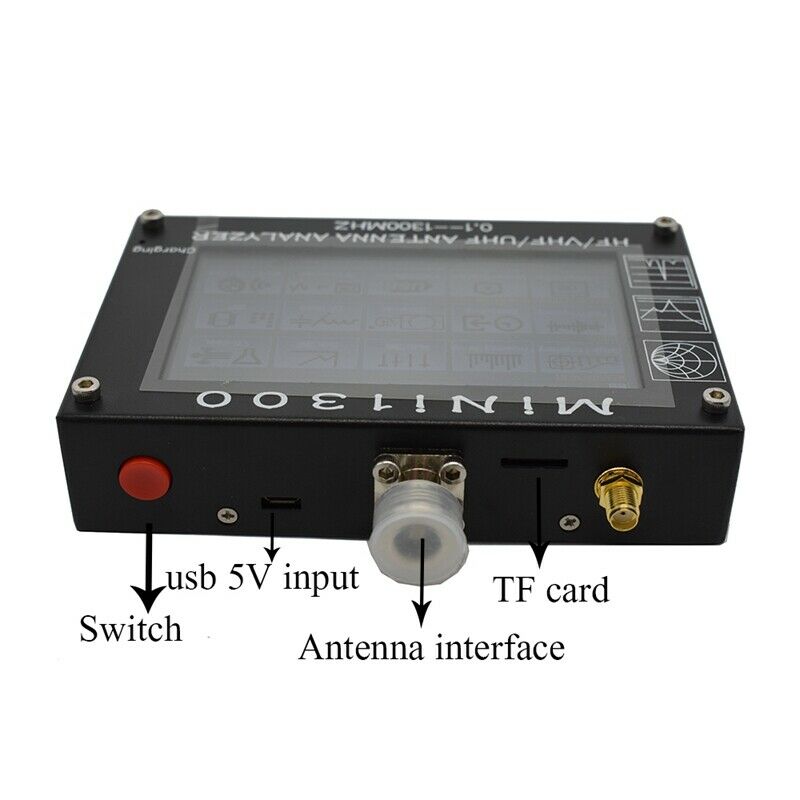

Connector Type: UHF N-type connector
VNA:SMA

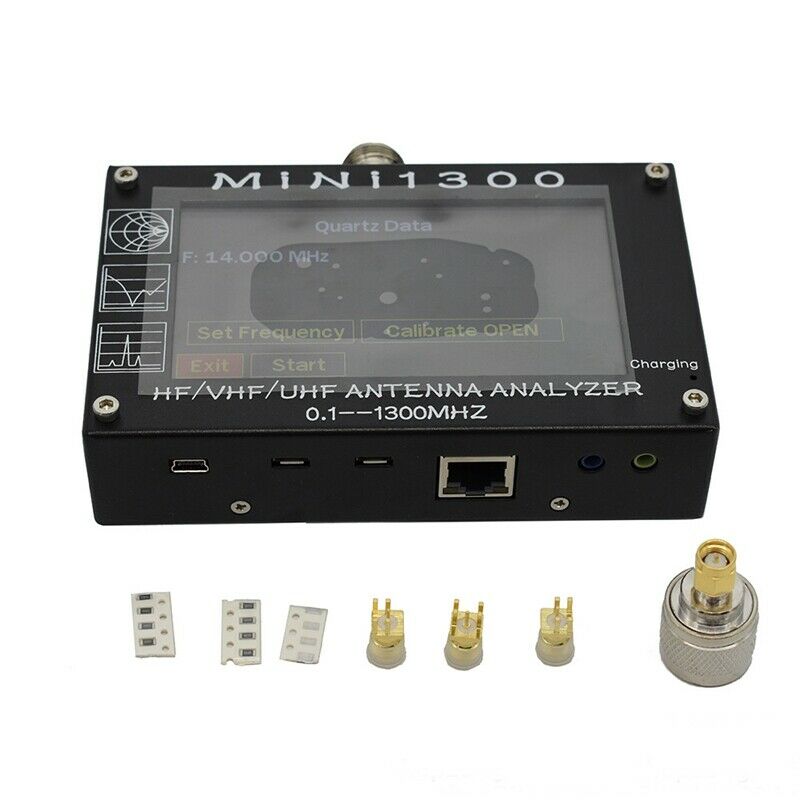

SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD size: 480x272 4.3" TFT LCD display
Touch Screen Type: Capacitive
All capacitive touchscreen on the display – no buttons are needed
Power Source: USB or Internal  Li-ion
Built-in Li-ion charging circuitry and DC-DC booster
Maximum charging current: 5V/1.5A

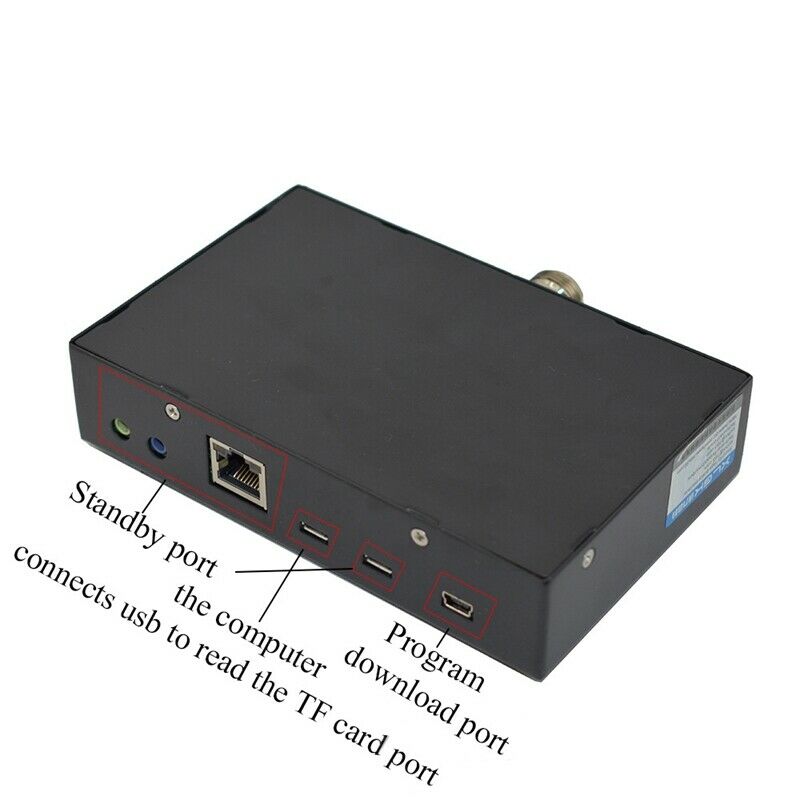

External Storage Method: TF card
Dimensions: 133·85·29 mm Does not contain prominent ports.
Weight: 550g
Warning: if the product has parameter changes, the actual test will prevail.
