GRA-YG1443 2M/70CM 800W Square Horizontal Directional Loop Base Antenna, 140~150/400~470MHz, SO239 GABIL

Info zu diesem Artikel

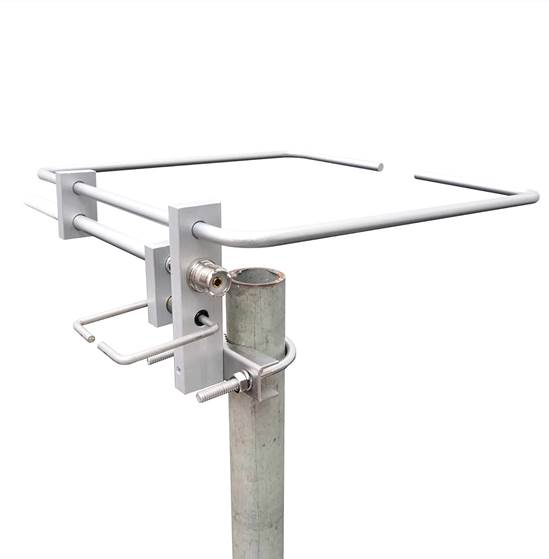

• Half Wave dipole bent into a square loop, super light weight, high gain, mounted horizontally.
• Frequency: 140 - 150/ 400 - 470 MHz
• Max power: 800 watts
• Gain: 4 dB(VHF) / 5 dB(UHF)
• Made in Taiwan

Produktbeschreibung

· Features

· Half Wave dipole bent into a square loop, super light weight, high gain, mounted horizontally.
GRA-YG1443 is a directional antenna. The direction is where the square opening.

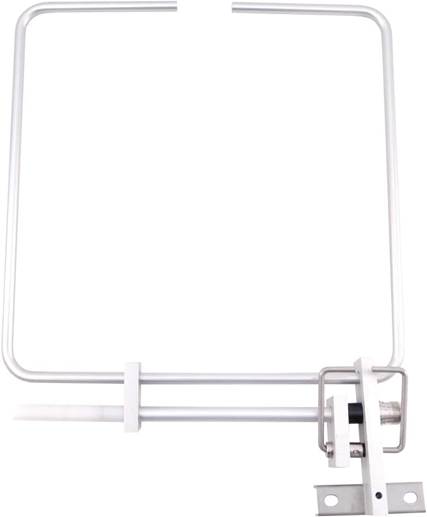

The big square is for VHF, the small one for UHF.
Frequency: 140 - 150/ 400 - 470 MHz
Max power: 800 watts
Gain: 4 dB(VHF) / 5 dB(UHF)

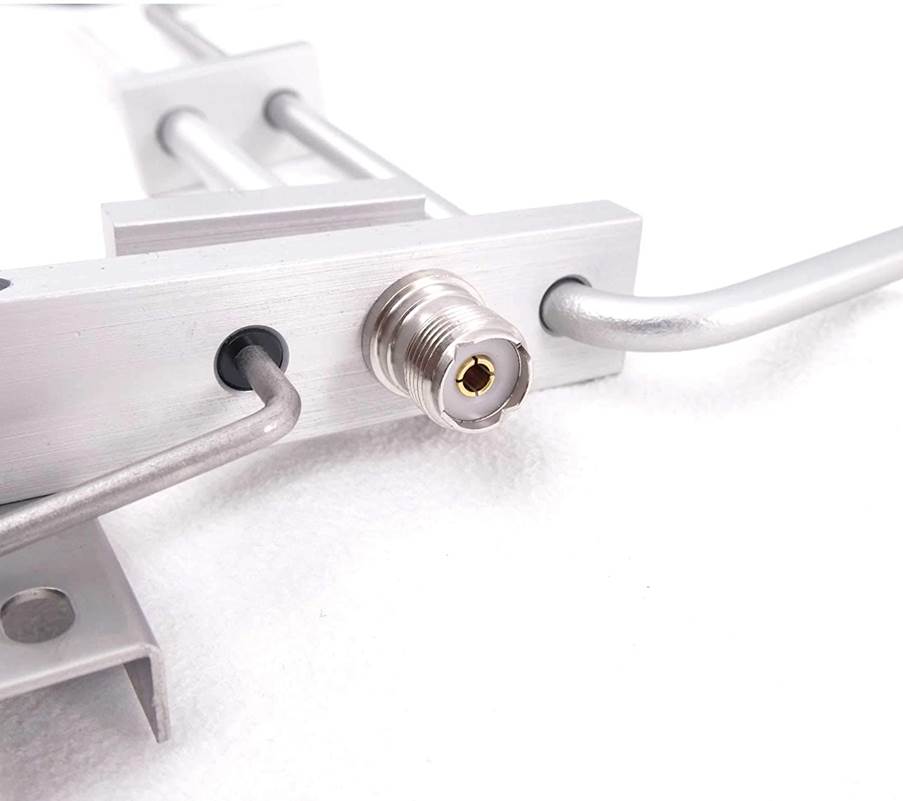

Connector: SO-239 (UHF), size: 11 x 11 inch (28 x 28 cm)
Made in Taiwan

·

· Specifications

· Frequency: 140-150MHz/400-470MHz
Gain: 4dB/5dB
VSWR: ≦1.5
Max Power: 500W
Impedance: 50Ω
Weight: 0.36kg
Length:28cm×28cm
Connector:SO239
