Norm

AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory)

Mode

VHF

Frequency range

144 - 146 mHz

Power

1 Watt - 5 Watts ERP

Input voltage

7.4 Volts DC

Memories

128 channels

Channel spacing

12.5 kHz - 25 kHz

Bandwidth

12.5 kHz

Step of increment

5 / 6.25 / 10 / 12.5 / 25 / 37.5 / 50 kHz

TONE BURST

Yes : 1750 Hz

SQUELCH

Yes : elimination of background noise

CTCSS / DCS (encoder/decoder)

Yes : sub-audio code to activate repeater like selective tone

DTMF (encoder)

Yes : tones selected to activate repeater, internet gateway and other items

VOX function

Yes : this feature triggers your microphone sound (hands free)

TOT function

Yes : time out timer

SCAN function

Yes : automatic search of busy channels

TX/OFF function

Yes : forbidding emission

REVERSE function

Yes : the current channel RX frequency will be switched to TX frequency

ALARM function

Yes : the transceiver will sound alarm beep, meanwhile, it start transmitting and send the alarm beep to companions or systems

APO function

Yes : automatic power off (programmable)

DSP function

Yes : digital signal processor

Various functions

Vibrator + Keylock + Radio FM

Display

LCD display : red, orange, green

Level display

Battery level indicator, battery voltage ...

Options

Programming cable + software

Battery

Li-ion 1200 mAh * 7.4V

Connection

CRT K type

Antenna

17 cm / SMA-Female

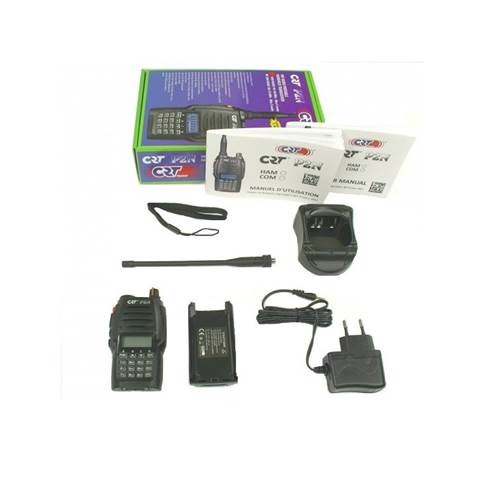

Deliver with

Desktop charger, battery, antenna, strap and belt clip

Size

100 x 56 x 29 mm (with battery, without antenna)

Weight

185 gr (with battry and antenna)

Guaranty

2 years
