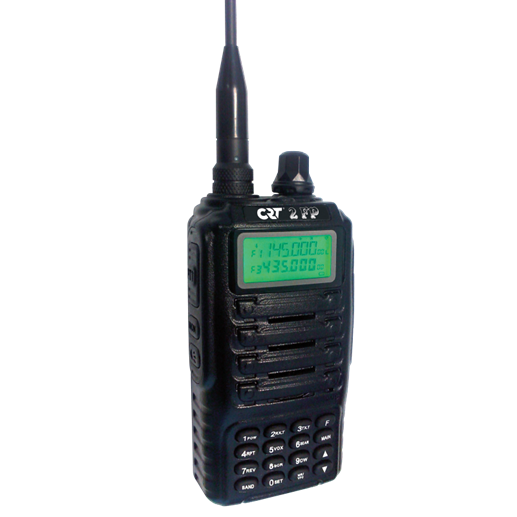

CRT 2 FP HAM
Data sheet
|
Norm |
AMATEUR
RADIO (restriction : in emission
use with amator radio certificate obligatory) |
|
Mode |
VHF / UHF |
|
Frequency range |
RX/TX :
144-146 Mhz / 430-440 Mhz
|
|
Power |
VHF : 1W /
2.5W / 5Watts -- UHF : 1W / 2.5W / 4Watts ERP |
|
Input voltage |
7.2V DC ±
20% |
|
Memories |
200 channels |
|
Channel spacing |
25 KHz wide band - 12.5 KHz narrow
band |
|
Bandwidth |
12.5 Khz / 25 Khz |
|
Step of increment |
5 / 6.25 /
10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 Khz |
|
Working |
V/V ; V/U
; U/U ; U/V |
|
TONE BURST |
Yes |
|
CTCSS /
DCS (encoder/decoder) |
50 CTCSS /
208 DCS : sub-audio code to
activate repeater like selective tone |
|
DOUBLE
WATCH function |
Yes |
|
VOX function |
Yes : this feature triggers your microphone sound (hands free) |
|
TOT function |
Yes : time
out timer |
|
SCAN function |
Yes : automatic search of busy channels |
|
BCLO function |
Yes : busy Channel Lock |
|
REVERSE function |
Yes : the current channel
RX frequency will be switched to TX frequency |
|
Receptor |
Yes : FM radio RX with auto search |
|
Various functions |
Keypad lock + Memory SCAN + Beep Touch + |
|
Bonus |
Flashlight |
|
Structure |
ABS case and aluminum
chassis injected |
|
Display |
LCD display : green |
|
Level display |
Channel
Name Edit + Low power indication... |
|
Options |
Programming cable +
software |
|
Programmable by software |
Yes |
|
Battery |
Li-ion 2000 mAh * 7.2V |
|
Connection |
CRT K type |
|
Antenna |
hy again
21 cm / SMA-Female |
|

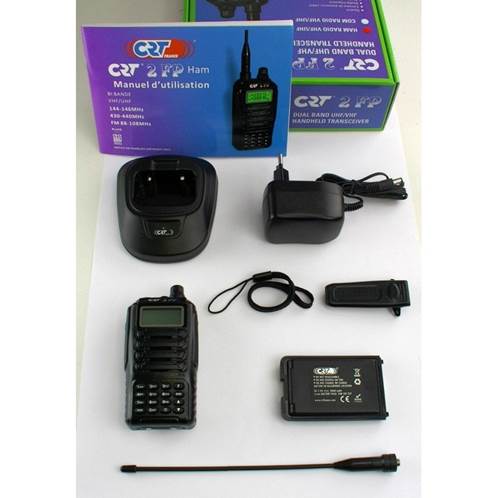

Deliver with |
Desktop charger, battery, antenna, strap for neck + strap for hand and
belt clip |
|
Size |
110 x 56 x
37 |
|
Weight |
250 g |
|
Guaranty |
2 years |
