AY04 Yagi
Radio Antenna 144/430MHz High Gain
| Model | AY02 | AY03 | AY04 |
| Frequency | UHF:400~470 MHz | UHF:400~470 MHz | VHF/UHF:144&430MHz |
| Element | 3 Elements | 5 Elements |
VHF(3
Elements), |
| Feature | Foldable | Detachable | Detachable |
| Connector | SL16K | SL16K | SL16K |
| Gain | 7 dBi | 9 dBi | 9.5 dBi / 11.5 dBi |
| Polarization | Vertical | Vertical | Horizontal or Vertical |
| Length | 45.2cm/17.8inch | 72.5cm/28.5inch | 92.5cm/36.4inch |
| Weight | 0.4Kg | 0.4Kg |
0.85Kg |
| Size | 452 x 351x 47mm | 725 x 380x 48mm | 925×1045×60 mm |

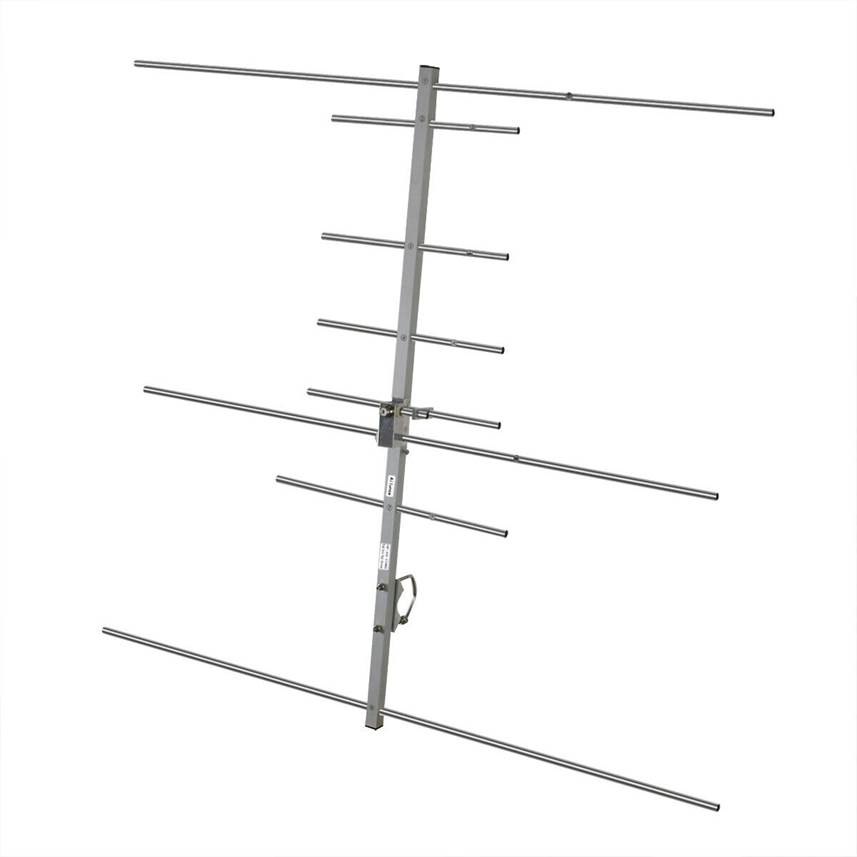

Ailunce AY04 High Gain
Yagi 144&430 MHz Directional
Antenna
Brand: Ailunce
Model: AY04
Frequency: UHF&VHF
Length: 92.5cm/36.4inch
Feature
•VHF(3
Elements), UHF(5 Elements)
•High Gain
•Strong directionality
•Strong
anti-jamming
•Realize long distance
communication
•Simple construction and easy assembly and disassembly
•Lightweight
and sturdy, easy to set up
•High-cost performance
This antenna is compatible with walkie-talkies with frequency 144 & 430 MHz
, eg. Ailunce HD1
DMR radio, Retevis RT1 RT3
RT3S RT5 RT5R RT5RV RT29 RT87 RT50 RT81 RT82 RT83 RT84, BaoFeng
UV-5R 888S Yaesu TYT etc.
|
Electrical Specifications |
|
|
Frequency Range |
144 &
430 MHz |
|
Impedance |
50Ω |
|
VSWR |
＜1.5 |
|
Gain |
9.5 dBi / 11.5 dBi |
|
Horizontal
Beam Width |
53°/ 45° |
|
Vertical Beam Width |
48°/ 40° |
|
Polarization |
Horizontal
or Vertical |
|
Front To Back Ratio |
>12 dB |
|
Maximum
Power Input-watts |
100W |
|
Lighting Protection |
Direct Ground |
|
Connector |
SL16.K |
|
Mechanical Specifications |
|
|
Size |
925×1045×60
mm |
|
Mounting hardware |
Ř30-Ř60 mm |
|
Rated Wind Velocity |
60 m/s |
|
Weight |
0.85Kg |
Notice: According to our customer
feedback,the Yagi Antenna is
able to communicate
15 -50 miles with good signal. and
some customers said the communication
distance can reach 90km,even over 100 km.please just for reference!

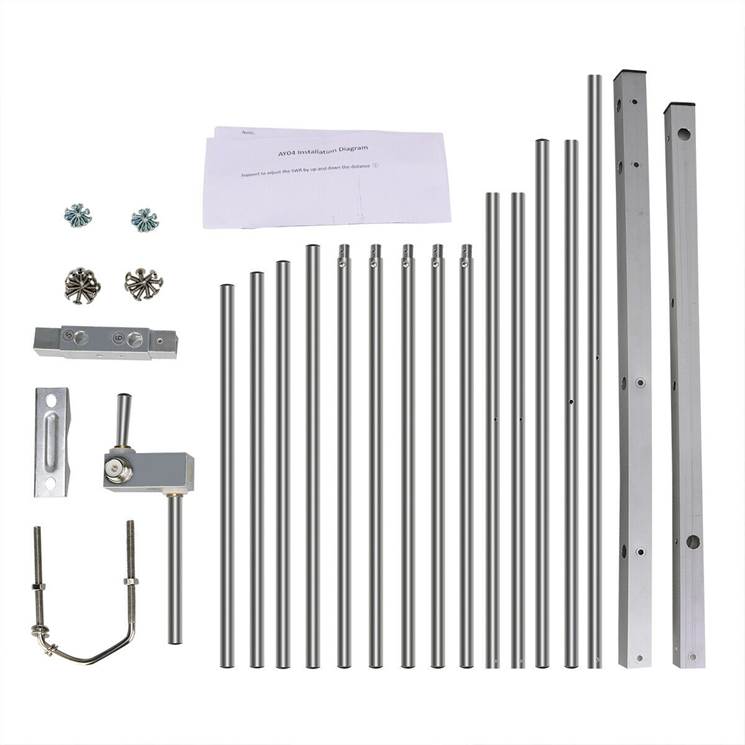

Package Includes:
1XAilunce AY04 High Gain Antenna
