AY03 Yagi
High Gain Radio Antenna UHF
100W

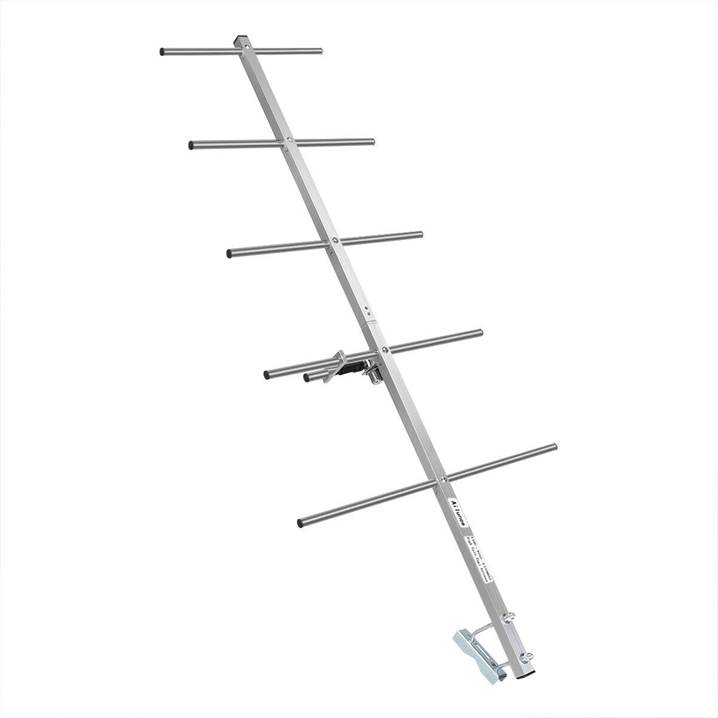

Ailunce AY03 High Gain Yagi UHF Directional Antenna
Brand: Ailunce
Model: AY03
Frequency: UHF
Length: 72.5cm/28.5inch
Feature
•5
Elements
•High Gain
•Strong directionality
•Strong
anti-jamming
•Realize long distance
communication
•Simple construction and easy assembly and disassembly
•Lightweight
and sturdy, easy to set up
•High-cost performance
|
Electrical Specifications |
|
|
Frequency Range |
UHF:400~470
MHz |
|
Bandwidth |
50MHz |
|
Impedance |
50Ω |
|
VSWR |
＜1.5 |
|
Gain |
9 dBi |
|
Polarization |
Vertical |
|
Horizontal
3dB Beam Width |
58° |
|
Vertical 3dB Beam Width |
40° |
|
Front To Back Ratio |
>15 dB |
|
Maximum
Power Input-watts |
100W |
|
Lighting Protection |
Direct Ground |
|
Connector |
SL16.K |
|
Mechanical Specifications |
|
|
Size |
725 x 380x 48mm |
|
Mounting hardware |
Ř30～Ř40 mm |
|
Rated Wind Velocity |
60 m/s |
|
Weight |
0.4Kg
|
Notice: According to our customer
feedback,the Yagi Antenna is
able to communicate
15 -50 miles with good signal. and
some customers said the communication
distance can reach 90km,even over 100 km.please just for reference!
Package Includes:
1XAilunce AY03 High Gain Antenna
