AY02 Yagi
Foldable Antenna UHF 100W

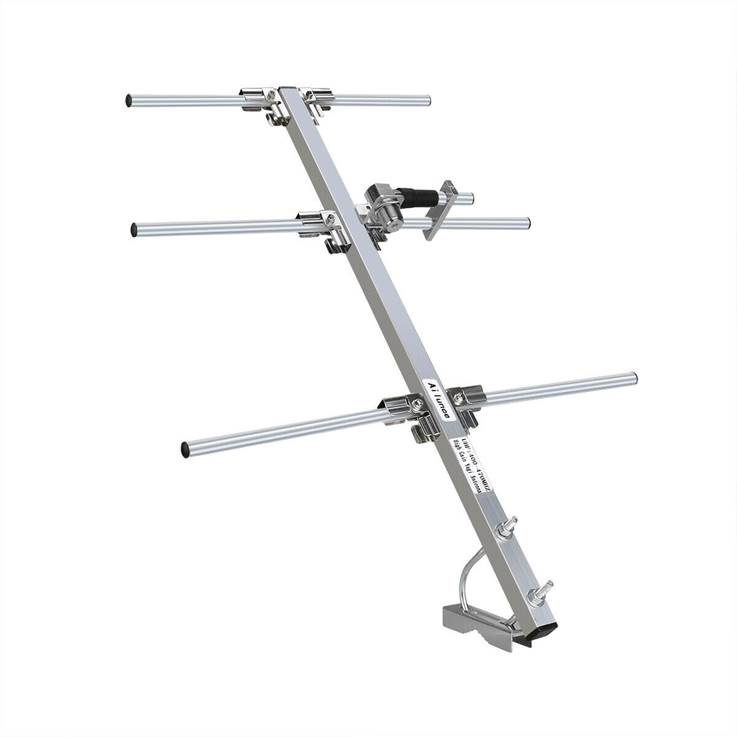

Ailunce AY02 Foldable
Yagi UHF Directional Antenna
Brand: Ailunce
Model: AY02
Frequency: UHF
Length: 45.2cm/17.8inch
Feature
•3
Elements
•Foldable
•High Gain
•Strong directionality
•Strong
anti-jamming
•Realize long distance
communication
•Simple construction and easy assembly and disassembly
•Lightweight
and sturdy, easy to set up
•High-cost performance
|
Electrical Specifications |
|
|
Frequency Range |
UHF:400~470 MHz |
|
Bandwidth |
20MHz |
|
Impedance |
50Ω |
|
VSWR |
＜1.5 |
|
Gain |
7 dBi |
|
Polarization |
Vertical |
|
Horizontal
3dB Beam Width |
53° |
|
Vertical 3dB Beam Width |
45° |
|
Front To Back Ratio |
>15 dB |
|
Maximum
Power Input-watts |
100W |
|
Lighting Protection |
Direct Ground |
|
Connector |
SL16K |
|
Mechanical Specifications |
|
|
Size |
452 x 351x
47mm |
|
Mounting hardware |
Ř30～Ř40 mm |
|
Rated Wind Velocity |
60 m/s |
|
Weight |
0.4Kg |
Notice: According to our customer
feedback,the Yagi Antenna is
able to communicate
15 -50 miles with good signal. and
some customers said the communication
distance can reach 90km,even over 100 km.please just for reference!
Package Includes:
1XAilunce AY02 Foldable Yagi Antenna
