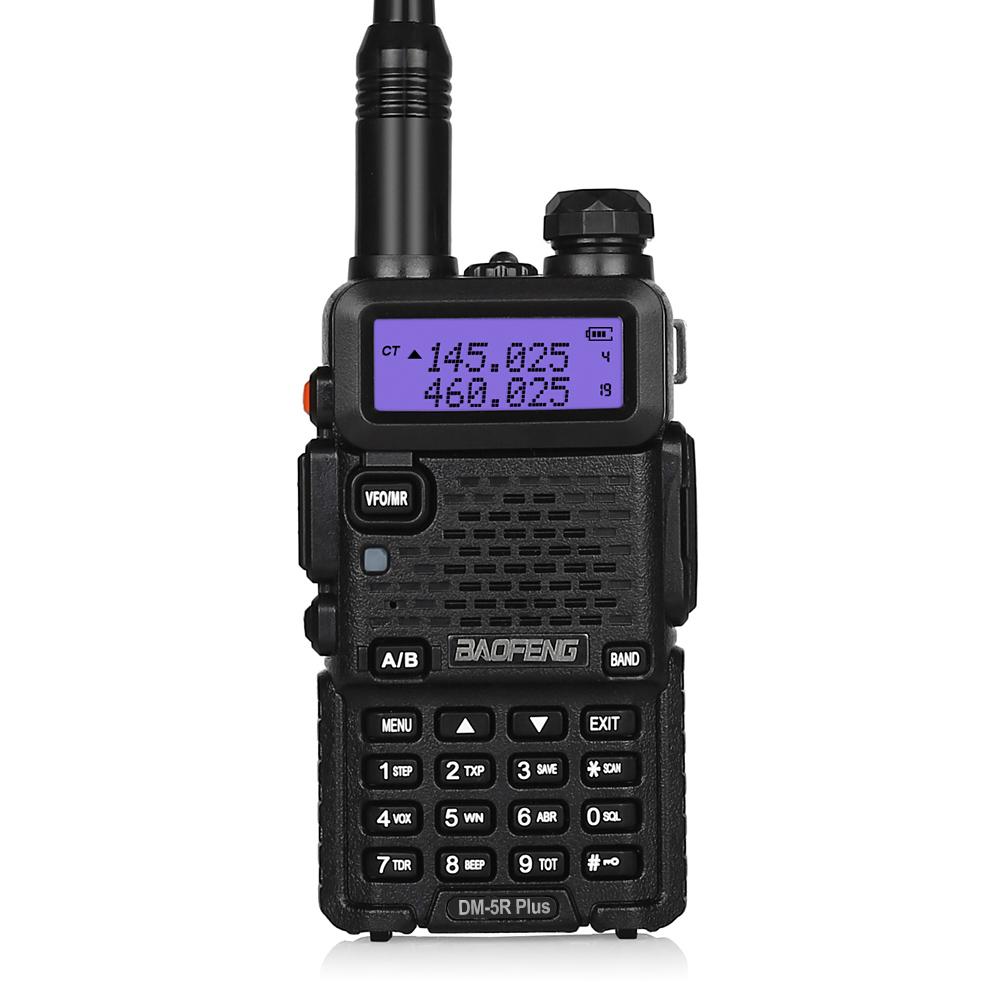

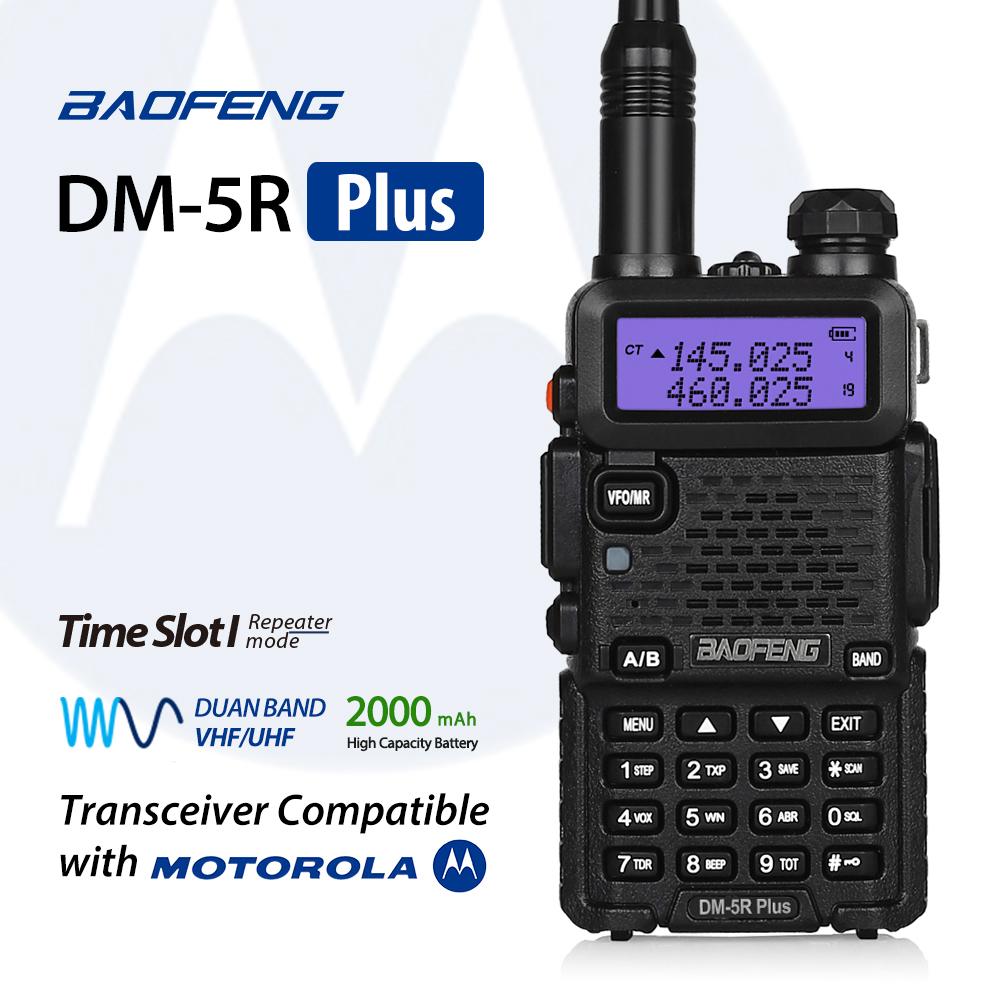

Baofeng DM-5R Plus Dual Band DMR Digital Two Way Radio
- Brand Name:BAOFENG
- Frequency Range:Dual Band 136-174/400-480mhz
- Talk Range:3km-10km
- Maximum Range:3km-5km
- Walkie Talkie Type:Portable
- Is_Display:Yes
- Dimensions:110*52*32MM
- Type:Two Way Radio
- Model Number:DM-5R plus 2018
- Material:PLASTIC
- Storage Channel:1024
- type:digital walkie talkie
- interphone::DMR Digital Radio
- Output:5W
- Function :Compatible with Digital And Analong Systems
- suppotr for:digital&analogue mode
Specifications:
| General |
| Frequency Range |
Dual Band VHF 136-174MHz &UHF 400-480MHz |
| Storage channel |
64 groups ,1024 |
| Stepped Frequency |
2.5/5/6.25/10/12.5/20/25KHz |
| Operating Voltage |
DC 7.4V |
| Frequency Stability |
±1.5ppm |
| Operating Temperature |
-20°c ~ 50°c |
| Operating Mode |
Same-frequency simple or different-frequency simplex |
| Antenna Impedance |
50O |
| Battery Capacity |
2000mAh |
| Dimensions |
150 ×60 ×30mm(Antenna Not included) |
| Transmitting |
| Output Power |
1W/5W |
| Modulation (wide band/ Narrow band) |
Analog: 16K F3E/11K F3E
Digital:Tier i&ii
|
| Maximum frequency Deviation (wide band/ Narrow band) |
=5KHz /=2.5KHz |
| FSK allowable error rate |
=3% |
| Spurious power |
=7.5 W |
| Adjacent channel power |
=-65dB =-60dB |
| Signal to noise radio |
-45dB -40dB |
| CTCSS/DCS Frequency Deviation |
0.7 ±0.1KHz/0.4± 0.1KHz |
| Modulation sensitivity |
8-12mV |
| Transmitting Current |
=1.5A |
| Receiving |
| Analog sensitivity |
-122dBm (12dB SINAD) |
| Digital sensitivity |
-120dBm (BER =5%) |
| Audio Power |
1W |
| Audio Distortion |
<10% |
| Intermoulation |
=62dB / = 58dB |
| Adjacent channel selectivity (Wideband/narrow band) |
=65dB /=60dB |
| Receiving current |
=380mA |
Package Contain:
1× BAOFENG DM-5R plus DMR Dual band Digital Radio
1× 2000mAh Li-ion Battery Pack
1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× Earpiece
1× User Manual
|
