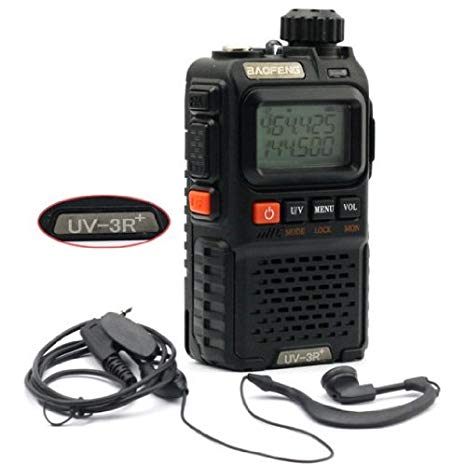

BAOFENG UV-3R Plus 136-174/400-470Mhz radio

BAOFENG UV-3R Plus 136-174/400-470Mhz radio

BAOFENG UV-3R The transceiver is a micro-miniature multiband

Introduction

FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

Feature & Specification
VHF/ UHF DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-470MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 2 Watts
  • 99 Channels + 1 Emergency Channel
  • 50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (87.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • High/Low Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 5/6.25/12.5/25KHz @

Specifications:



Frequency Range

VHF136-174 UHF 400-470MHz (Dual Band)

Operating Voltage

3.7V

Operating Temperature

-30c~+60c

Battery

(Li-ion)

Antenna Impedance

50 ohm

Dimension(without antenna&battery(L×W×H)

52*87*29(mm)

Weight ( with antenna & + battery)

about 150g

Transmitter

RF Power Output

UHF:2W

FM Noise

65dB

Adjacent Channel Power

45dB/42dB

Receiver

Spurious response rejection

60dB

Receiver current

400mA

Standby Current

75mA

@

Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
