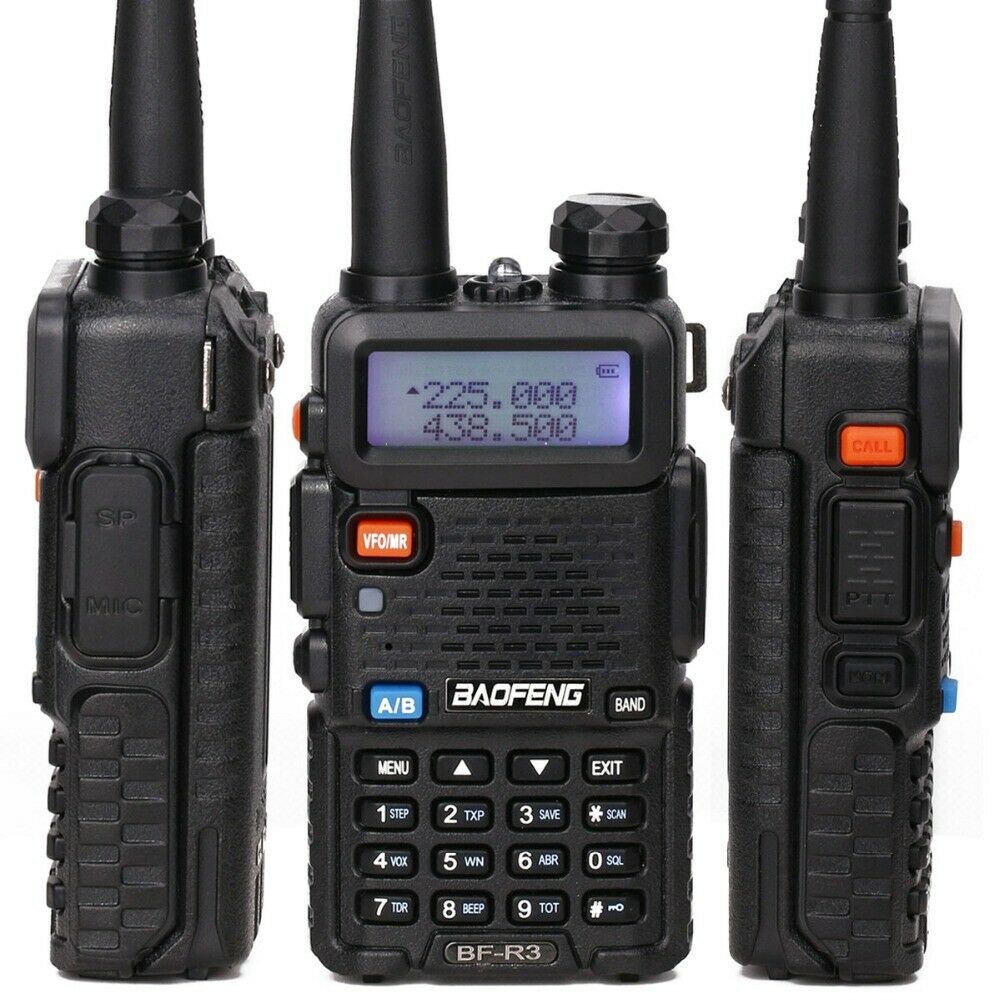

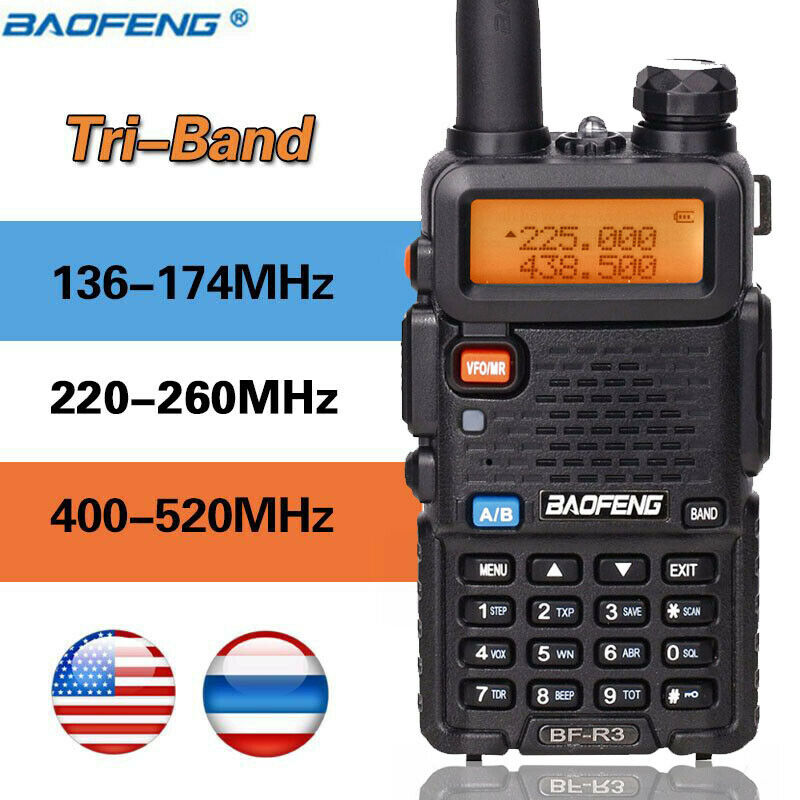

BaoFeng BF-R3 Tri-Band 136-174/220-260/400-520MHz

Attention:

Tri-band walkie talkie Baofeng BF-R3  ,Frequency range in 136-174/220-260/400-520MHz supporting both Wide and Narrowband with 2.5kHz steps.

1.Suit for 5R Accessories  BF-R3  continued the classic uv-5r design, it is compatible with all accessories of 5R series, such us original speaker, earpiece, 3800mAh battery, etc.

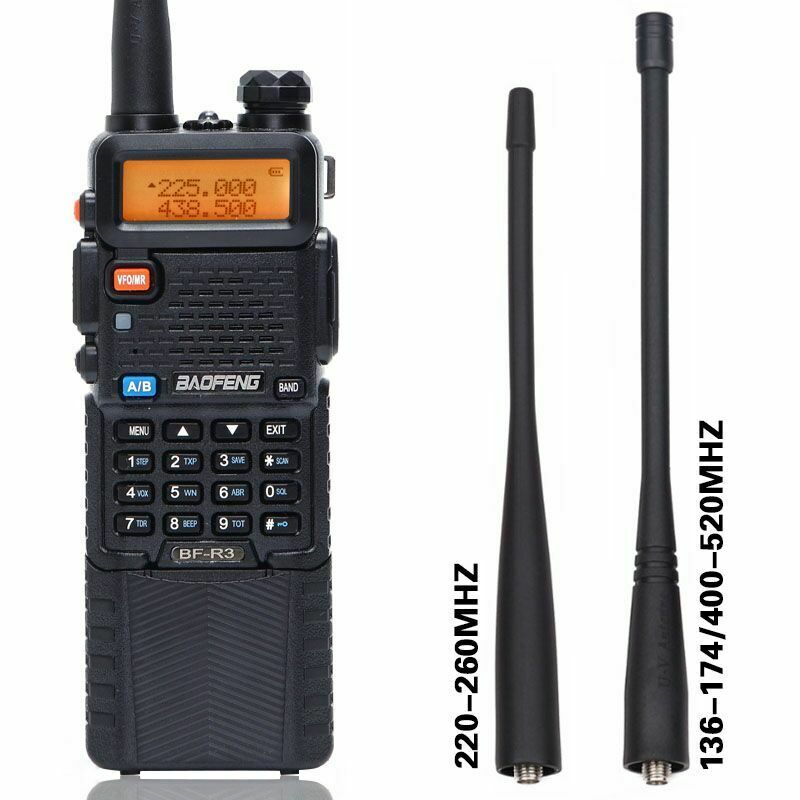

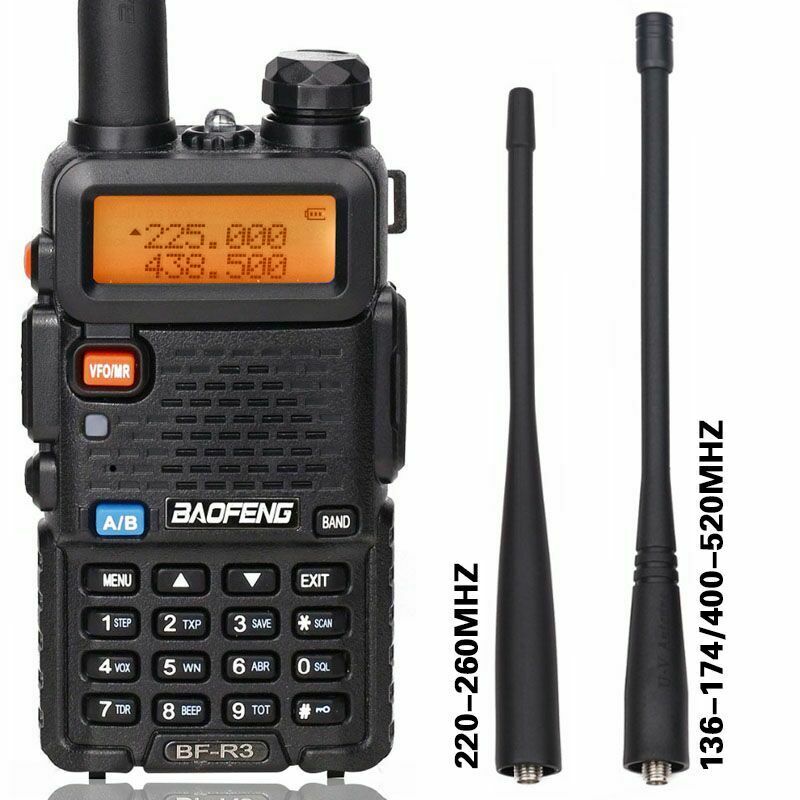

2.                Special Antenna BF-R3  provide one Dual Band High Gain Antenna and one 220-260MHz Single Band antenna.

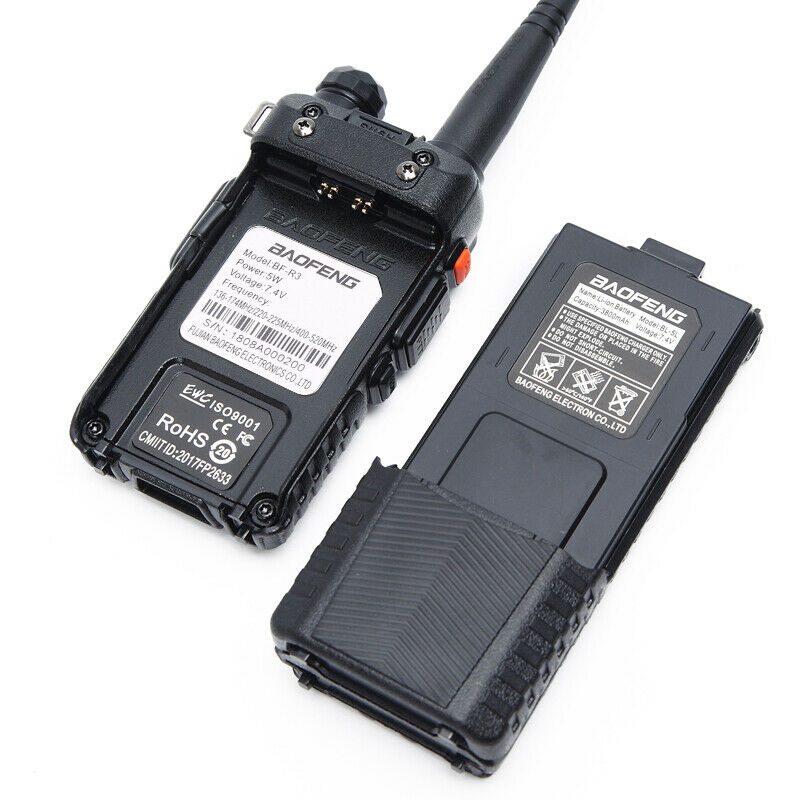

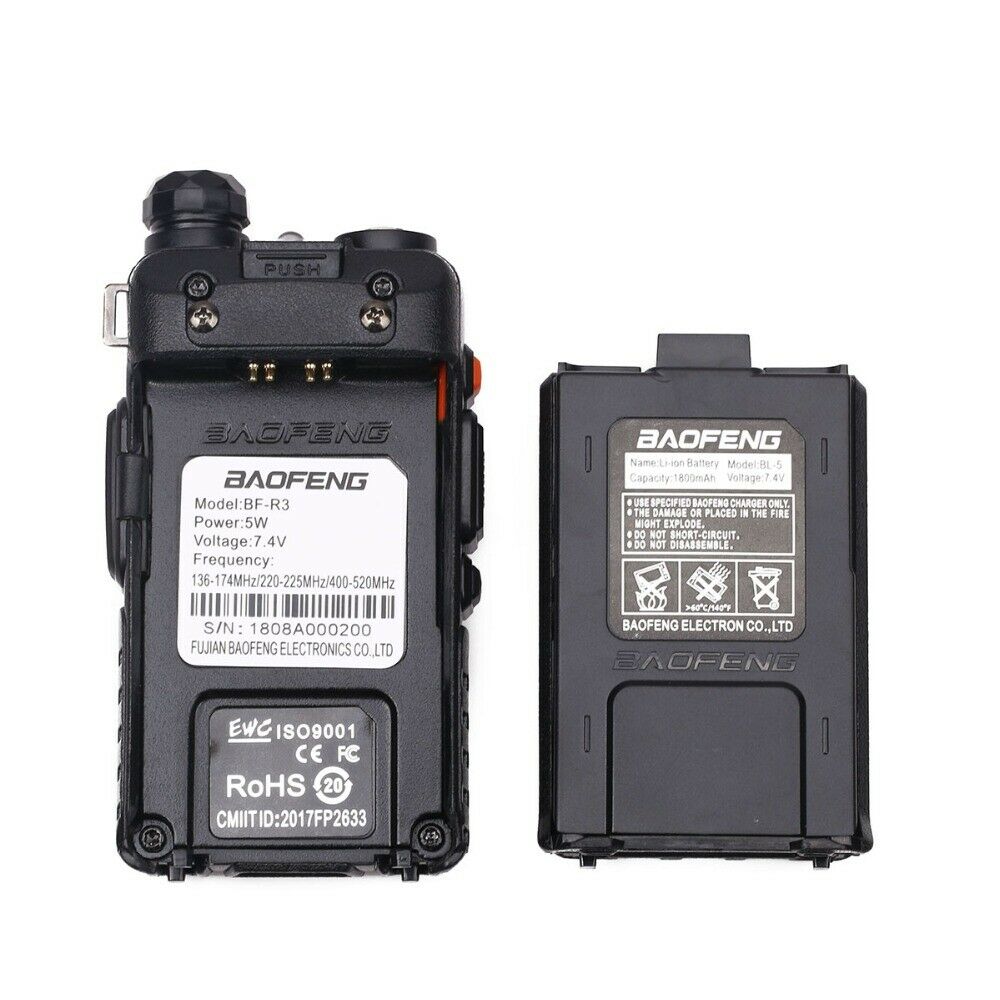

3.                Enlarged Battery Capacity BF-R3 equipped with 1800mAh Li-ion Battery much better than other 5R series battery capacity.

4.                VOX Function It lets you speak and transmit without pressing the PTT button.

Specifications:

Hot Spots
Tri-band / Tri-display	dual standby
128 groups channelsstorage	Shortcut menuoperationmode
VFO & Memory channelsscan	Emergency Alarm
Time-out Timer (TOT)	0~9 grades VOX selectable
PTT & ANI ID	FM radio and 25 stations storage
Voice companding	50 CTCSS/104 DCS
High/Low TX power selectable	Busy channel lock-out(BCLO)
DTMF function	OFF SET function
Wide/Narrow Band(25kHz/12.5kHz)	Yes
VOX function	Yes
Busylockoutfunction	Yes
Scanning function	Yes
Monitor function	Yes
Time-out Timer (TOT) function	Yes
LCD display	Yes
Dual display	Yes
Batteryvoltagedisplayfunction	Yes
Channel name display and editing functions	Yes
Signal strengthindicator	Yes
Keypad lock function	Yes
Built-in Led torch	Yes
FM radio	Yes
Wireclonefunction	Yes
Emergency alarmfunction	Yes
Low batteryalarm	Yes
Power savingfunction	Yes
High/Low TX power selectable	Yes	5W/1W
ROGER SET	Yes
Chinese and English voice prompt	Yes
PC softwareprogrammable	Yes
Basic Descriptions
RatedVoltage	7.4V DC±10%
Output power	= 5W
Battery type	Li-ionbattery
Batterycapacity	1800mAh
Working temperature	-20~+50°C
AntennaImpedance	50O
Weight	255g
Dimension(L×W×H)	58×32×110mm(Not Antenna)
Specification
Frequencystability	±2.5ppm
Carierwavetolerance	5ppm
Modulation	16kFF3E / 11kFF3E
Max frequencydeviation	< 5kHz(Wide)< 2.5kHz(Narrow)
Modulation character	6 dB per fold frequency patch
Emission current	< 1.6A(5W)
CTCSS / DCS	0.5±0.1kHz(Wide)0.3±0.1kHz(Narrow)
Sensitivity	< 0.16µV(12dB SINAD)
Silent sensitivity	< 0.2µV
Intermediation Distortion	<10%
Intermodulation	8-12mv
Adjacent channel selectivity( wide/narrow)	<-65dB(Wide) <-60dB(Narrow)

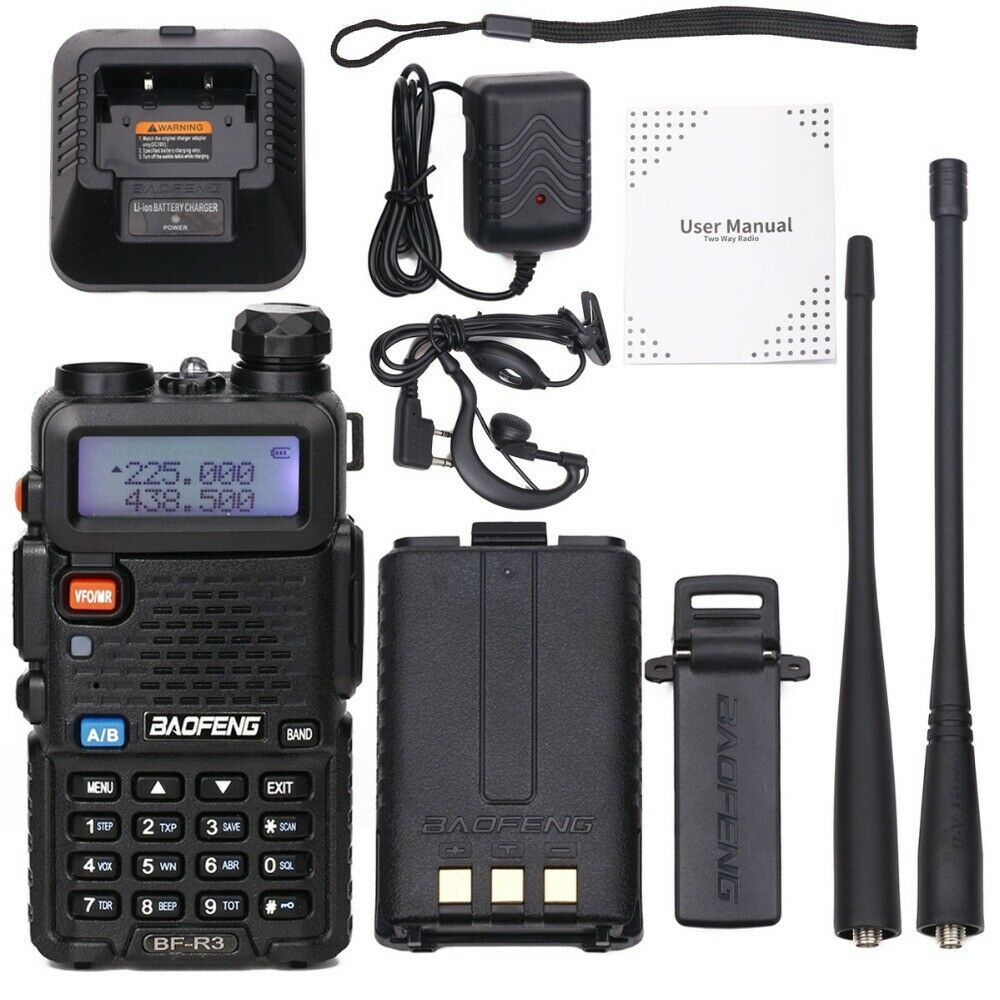

Package Include:

·                           1 x Portable radio

·                           2 x Antenna

·                           1 x Li-ionbattery

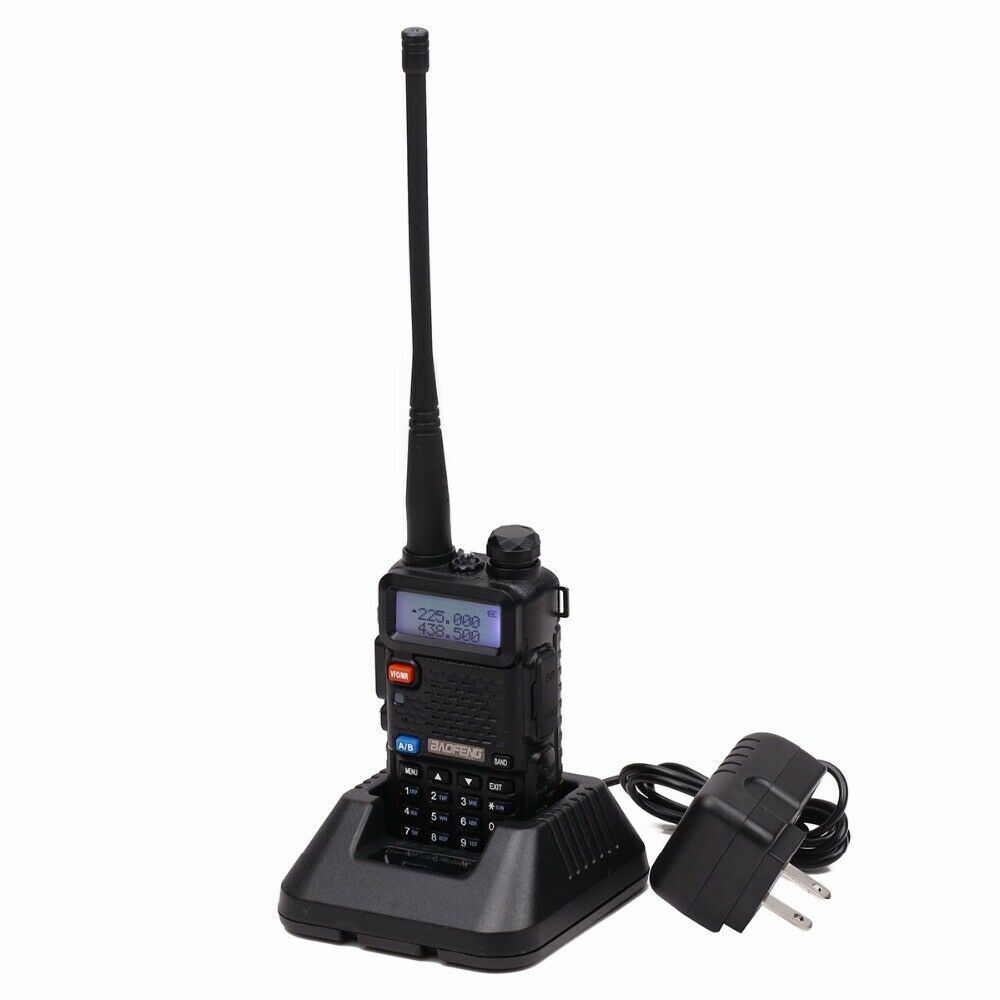

·                           1 x Desktop Charger  ( 100V ~ 240V )

·                           1 x Belt clip

·                           1 x The sling

·                           1 x Earpiece (as the gift)

·                           1 x User'smanual
